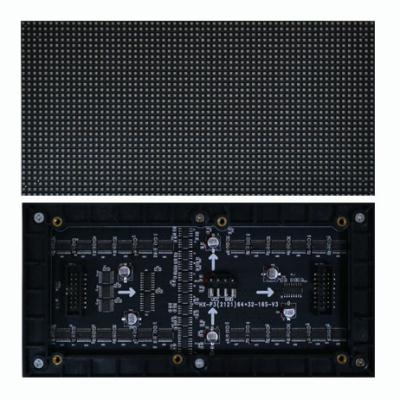

  • P3 Full Color LED Screen
  •
Specifications



Unit Module  Item Parameter
Model Number CG-P3-16S
Module size 192mm*96mm
Pixel pitch 3mm
Pixels Density 111111 dots/m2
Pixel configuration 1R1G1B
Package mode SMD2121
Pixel resolution 64dots(W)*32 dots(H)
Max Power consumption 18W
Module thickness 14.66mm(without magnet)
26.55mm(with magnet)
Weight 0.155kg
Drive type Constant drive
Scan mode  1/16scan
Port type HUB75-A
Brightness of white balance ≥1800cd/m2
Cabinet  Dimension 576mm*576mm
Quantity of Module 18
Power supply 5V/40A*3pcs
Thermal discharge fan 2pcs
Pixel per cabinet 192*192
Best viewing distance 3M~20M
Best viewing angles 160°(W) 120°(H)
Temperature storage:-35℃~+85℃
working:-20℃~+50℃
Operation humidity 10%-95%
Thickness 85mm
Power Working voltage AC220V±10%
Average Power consumption 180W/㎡
Max.Power consumption ≤360W/㎡
Current ≤20mA(single LED)
Main technical
  parameter
Driving device Constant current driver IC
Refresh rate ≥400HZ
Grey scale/colors 256levels of each color(RGB)/16.7M colors
MTBF ≥100000 hours
Power switch Automatic switch
Display Mode 800*600/1024*768
