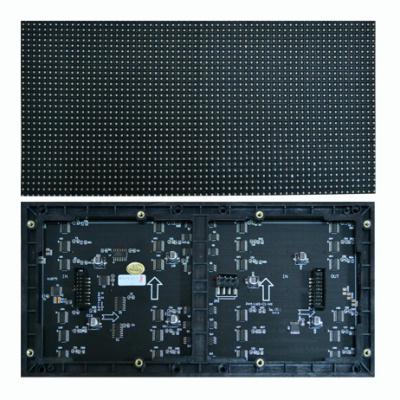

Unit Module | Item | Parameter |
Model Number | CG-P4-16S | |
Module size | 256mm*128mm | |
Pixel pitch | 4mm | |
Pixels Density | 62500 dots/m2 | |
Pixel configuration | 1R1G1B | |
Package mode | SMD2121 Black lamp /SMD2121/SMD0805 | |
Pixel resolution | 64dots(W)*32 dots(H) | |
Max Power consumption | 18W | |
Module thickness | 13.07mm(without magnet) | |
25.10mm(with magnet) | ||
Weight | 0.208kg | |
Drive type | Constant drive | |
Scan mode | 1/16scan | |
Port type | HUB75-A | |
Brightness of white balance | ≥1200cd/m2 | |
Package of Carton | 467*287*270mm | |
Quantity | 140 pcs | |
G.weight | 13.6kg | |
Cabinet | Dimension | 512mm*512mm |
Quantity of Module | 16 | |
Power supply | 5V/40A*2 pcs | |
Thermal discharge | fan 2pcs | |
Pixel per cabinet | 128*128 | |
Best viewing distance | 4M~20M | |
Best viewing angles | 160°(W) 120°(H) | |
Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ |
|
Opration humidity | 10%-95% | |
Thickness | 85mm | |
Power | Working voltage | AC220V±10% |
Average Power consumption | 185W/㎡ | |
Max.Power consumption | ≤550W/㎡ | |
Current | ≤20mA(single LED) | |
Main technical parameter |
Driving device | Constant current driver IC |
Refresh frequency | ≥400HZ | |
Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
Lifespan | ≥100000 hours | |
Power switch | Automatic switch | |
Display Mode | 800*600/1024*768 |
