  • P6 Outdoor Full Color LED Screen
  •
Specifications

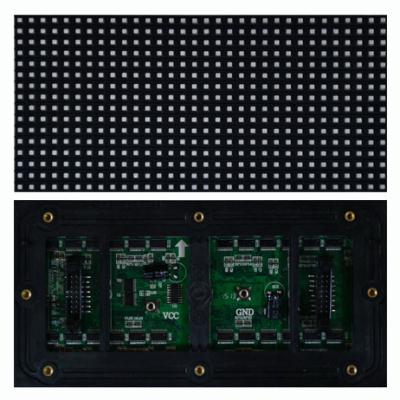

Unit Module  Item Parameter
Model Number CG-P6-4S
Module size 192mm*96mm
Pixel pitch 6mm
Pixels Density 27777点/m2
Pixel configuration 1R1G1B
Package mode SMD2828
Pixel resolution 32dots(W)*16 dots(H)
Max Power  20W
Module thickness 17.05mm
Weight 0.202kg
Drive type Constant drive
Scan mode  1/4scan
Port type HUB75-A
Brightness of white balance ≥6500cd/m2
Cabinet Dimension 576mm*576mm
Monomer Module Number 18
Power supply 5V/40A*2 pcs
Thermal discharge fan 2pcs
Pixel per cabinet 96 * 96 dots
Best viewing distance 6M~40M
Best viewing angles 160°(W) 120°(H)
Temperature storage:-35℃~+85℃
working:-20℃~+50℃
Relative humidity 10%-95%
Thickness 85mm
Power Working voltage AC220V±10%
Average Power consumption 300W/㎡
Max.Power consumption ≤1000W/㎡

Current ≤20mA(single LED)
Main technical
  parameter
Driving device Constant drive IC
Refresh frequency ≥400HZ
Grey scale/colors 256levels of each color(RGB)/16.7M colors
Lifespan ≥100000 hours
Power switch Automatic switch
Display Mode 800*600/1024*768
