An LED Display RGB Video Wall is a large-scale digital display system composed of multiple interconnected LED panels, each containing red (R), green (G), and blue (B) subpixels. These subpixels combine to produce over 16 million colors, enabling high-resolution visuals for advertising, entertainment, corporate events, and more.

Key Components:

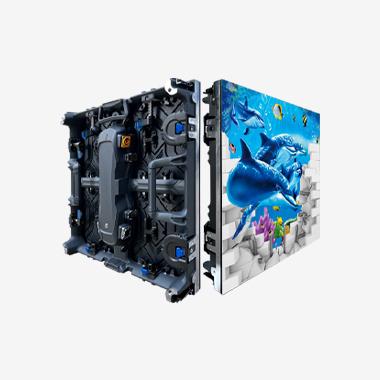

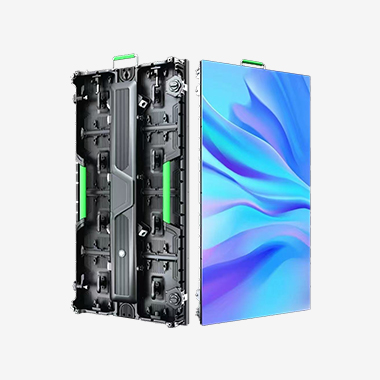

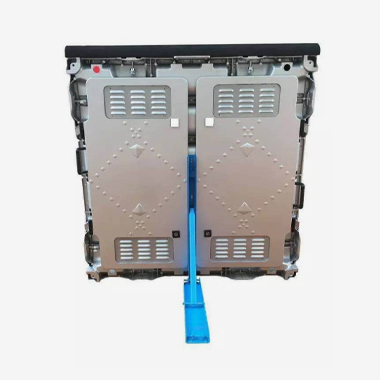

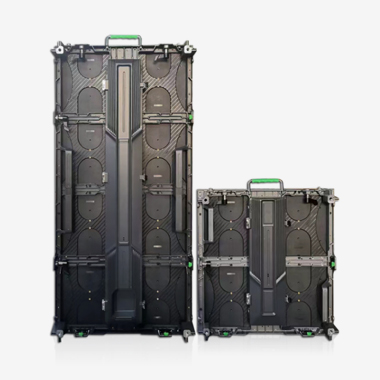

LED Modules: The smallest unit, typically 500mm x 500mm, containing hundreds of RGB LEDs.

Control System: Includes processors, senders, and receivers that manage content distribution and synchronization.

Power Supply Units (PSUs): Ensure stable voltage and redundancy to prevent failures.

Structural Framework: Aluminum trusses or custom rigging for mounting and stability.

Cooling System: Fans or liquid cooling to prevent overheating during extended use.

1.2 Historical Evolution and Technological Milestones

The development of LED video walls spans decades:

1960s–1980s: Early LEDs were limited to simple indicator lights due to low brightness and resolution.

1990s: Introduction of Surface-Mount Device (SMD) LEDs enabled smaller pixels and better color mixing.

2000s: Fine-pitch LEDs (pixel pitch <3mm) emerged, making video walls viable for indoor close-viewing applications.

2010s–Present: Advancements in mini-LED and micro-LED technologies improved brightness, contrast, and energy efficiency.

Today, LED video walls dominate the digital signage and live event markets, with leading manufacturers like ROE Visual, Absen, and Leyard pushing boundaries with innovations like transparent LEDs and curved displays.

1.3 Market Growth and Industry Trends

The global LED video wall market is projected to grow from

12.5billionin2023to

24.8 billion by 2030, driven by:

Rising demand for immersive experiences in concerts, sports, and retail.

Hybrid event models (physical + virtual) requiring high-quality streaming displays.

Sustainability initiatives, with manufacturers adopting recyclable materials and low-power designs.

Key trends include:

Mini-LED and Micro-LED Adoption: Offering higher brightness and longer lifespans than traditional LEDs.

AI-Powered Content Optimization: Automating color calibration and dynamic content adjustment.

Modular and Flexible Designs: Enabling curved, floor-mounted, and transparent installations.

2.1 Structural Design Considerations

Designing an LED video wall requires balancing aesthetics, functionality, and safety:

Weight Distribution: A 10m x 5m wall can weigh 2–5 tons, necessitating reinforced rigging and floor support.

Viewing Angles: Panels must be aligned to maintain consistent brightness and color accuracy across audiences.

Curvature and Shape: Curved walls enhance immersion but require precise calibration to avoid distortion.

Example: Coldplay’s Music of the Spheres tour featured a spherical LED centerpiece supported by a carbon-fiber frame, weighing just 1.2 tons despite its 8m diameter.

2.2 Installation Methods and Rigging Techniques

Installation varies based on venue type:

Ground-Supported: Used for outdoor festivals, where panels are stacked on scaffolding.

Flying Systems: For indoor arenas, panels are suspended from trusses using motorized hoists.

Hybrid Approaches: Combining ground and flying elements for complex stage designs.

Safety Protocols:

Rigging calculations must account for wind loads, seismic activity, and dynamic performer movements.

Redundant power and cooling systems prevent failures during high-stakes events.

2.3 Customization Options for Different Applications

LED video walls can be tailored to fit any creative vision:

Transparency: Leyard’s Crystal Series offers 60–80% transparency for see-through effects.

Flexible Panels: ROE’s CB5 Series bends up to 30 degrees for curved installations.

Interactive Floors: Absen’s AX Pro supports pressure-sensitive visuals triggered by dancers or audiences.

2.4 Maintenance and Longevity Best Practices

To maximize lifespan (typically 100,000+ hours):

Regular Cleaning: Dust and debris can reduce brightness by up to 30% if unchecked.

Calibration: Monthly adjustments ensure color accuracy and uniformity.

Modular Repairs: Replace individual panels instead of entire walls to reduce costs.

3.1 How LED Technology Produces Light and Color

LEDs generate light through electroluminescence:

Current passes through a semiconductor (e.g., gallium arsenide).

Electrons recombine with holes, releasing energy as photons.

Phosphor coatings convert blue light into red or green for RGB color mixing.

Unlike LCDs, LEDs do not require backlighting, resulting in deeper blacks and higher contrast ratios.

3.2 Pixel Pitch and Resolution Explained

Pixel pitch (distance between LED clusters) determines optimal viewing distance:

Fine Pitch (≤2.5mm): Ideal for indoor venues (e.g., theaters, conferences).

Standard Pitch (3–6mm): Suitable for mid-sized stages (e.g., arenas, festivals).

Coarse Pitch (>6mm): Used for large outdoor events where viewers are far from the screen.

Example: A 10m-wide wall with 3.9mm pitch has ~2,564 pixels horizontally, while a 2.6mm pitch wall has ~3,846 pixels.

3.3 Color Reproduction and Brightness Control

Modern LED panels use RGB or RGBW (Red-Green-Blue-White) subpixels to achieve:

Color Depth: >16 million colors via 8-bit or 10-bit processing.

Brightness: Measured in nits (cd/m²), with concert walls typically ranging from 5,000–10,000 nits to combat ambient light.

Dynamic Adjustment:

Ambient light sensors automatically adjust brightness for optimal visibility.

HDR (High Dynamic Range) enhances contrast in dark scenes.

3.4 Synchronization with Audio, Lighting, and Interactive Systems

LED walls are synchronized using:

Timecode (MIDI/SMPTE): Aligns visuals with music beats.

DMX/Art-Net: Controls lighting fixtures alongside LED content via a single interface.

Real-Time Rendering: Software like Notch and TouchDesigner generates generative visuals based on audio input.

Example: Travis Scott’s Fortnite virtual concert used LED walls synchronized with game engines to create an immersive metaverse experience.

4.1 Key Benefits Over Traditional Display Technologies

Advantage Description

Unmatched Brightness Visible even in direct sunlight (up to 10,000 nits).

Modularity Easy to repair by replacing individual panels.

Energy Efficiency Consumes 40–60% less power than projection systems.

Creative Flexibility Supports 3D mapping, AR overlays, and interactive floors.

4.2 Common Challenges and Limitations

Challenge Description

High Initial Cost Premium walls can exceed $500,000 for large-scale installations.

Heat Management Requires active cooling in hot climates to prevent performance degradation.

Content Creation Complexity Demands skilled VJs and motion designers for dynamic visuals.

4.3 Mitigation Strategies for Industry Professionals

Rental Solutions: Many production companies offer short-term LED wall rentals to reduce upfront costs.

Hybrid Displays: Combining LED with projection systems lowers expenses for large venues.

AI-Powered Tools: Automate content generation (e.g., Adobe After Effects plugins) to streamline workflows.

5.1 Current Use Cases Across Industries

Industry Application Examples

Live Events Concerts (Billie Eilish), festivals (Coachella), theater productions.

Retail Interactive product displays (Nike flagship stores).

Corporate Virtual conferences (Microsoft Teams backgrounds).

Sports Stadium scoreboards (Dallas Cowboys’ AT&T Stadium).

5.2 Emerging Technologies Shaping the Future

Micro-LED: Self-emissive pixels enable thinner, brighter displays with no bezels.

Holographic LED: Combines LED with pepper’s ghost techniques for lifelike 3D effects.

AI-Driven Personalization: Adaptive visuals that change based on audience demographics.

5.3 Sustainability Initiatives

Recycled Materials: ROE’s Black Onyx series uses 90% recycled aluminum.

Solar-Powered Walls: Experimental setups in Europe integrate solar panels for off-grid operation.

Conclusion

LED display RGB video walls have transformed visual communication by merging technology with artistry. As innovations like micro-LED, AI, and sustainability drive the industry forward, these displays will become even more integral to:

Live entertainment (immersive concerts, virtual productions).

Corporate branding (dynamic office lobbies, hybrid events).

Public infrastructure (smart cities, interactive transportation hubs).

While challenges like cost and heat management persist, the industry’s focus on modularity and eco-friendly designs ensures LED walls will remain at the forefront of visual innovation for decades to come.

Final Thought: The next frontier lies in seamless integration with AR/VR, where LED walls act as portals to blended physical-digital worlds—ushering in a new era of storytelling and audience engagement.
