The modern urban and suburban landscape is increasingly defined by its digital fabric, a dynamic interplay of light and information that communicates, advertises, and informs. At the forefront of this revolution, especially in the challenging exterior environment, is the waterproof outdoor media LED display sign. This is not merely an LED screen placed outside; it is a highly engineered system designed from the ground up to withstand the relentless assault of the elements while delivering brilliant, uninterrupted visual performance. It represents the marriage of advanced optical technology with ruggedized industrial design, creating a resilient and powerful medium that operates 24/7, 365 days a year, in rain, snow, wind, and sun.

An outdoor waterproof LED display is fundamentally a specialized class of digital signage. Its core purpose is to provide the dynamic benefits of full-motion video, animation, and real-time content updates in environments where exposure to moisture, dust, temperature fluctuations, and physical impacts is a constant threat. Unlike indoor signs, which operate in a controlled climate, or non-weatherproof outdoor signs that would quickly fail, these displays are built to be robust, reliable, and durable. They are the workhorses of the digital out-of-home (DOOH) advertising industry, the captivating giants atop buildings and along highways, and the critical information hubs in public spaces.

The defining characteristic of these displays is their waterproof nature, typically signified by an Ingress Protection (IP) rating. The IP rating, such as IP65, IP66, or IP67, is an international standard that classifies the degree of protection provided against intrusion of solid objects (including dust) and liquids. For example, an IP65 rating certifies that the display is "dust-tight" (6) and protected against "low-pressure water jets from any direction" (5). This level of protection is non-negotiable for long-term reliability. It dictates every aspect of the design, from the seals on the cabinet to the type of connectors used on the cables.

The applications for waterproof outdoor LED displays are vast and critical to modern infrastructure. The most visible examples are the colossal digital billboards that dominate skylines and highways, generating immense advertising revenue by hosting rotating, timely ads for multiple clients. They are also integral to sports and entertainment venues as exterior marquees and giant screens that broadcast events to crowds outside the stadium. In the realm of public service, they serve as vital real-time information systems at transportation hubs like airports and train stations, displaying schedules and emergency alerts. Corporations use them on building facades for branding, and municipalities deploy them in public squares for community announcements and events.

The technology's evolution has been driven by the need to conquer environmental challenges. Early outdoor LED attempts were often indoor screens placed behind glass, which led to issues with glare, condensation, heat buildup ("greenhouse effect"), and maintenance access. Modern dedicated outdoor displays are engineered to be their own first and last line of defense. They incorporate specialized materials that resist UV radiation to prevent yellowing, advanced cooling systems that manage heat in direct sunlight, and brightness control sensors that automatically adjust output to ensure perfect visibility from dawn to dusk while conserving energy.

Furthermore, the content delivered by these signs has evolved. They are no longer simple billboards but nodes in a networked communication system. Through internet connectivity, content can be updated instantly and remotely from a central location. This enables incredibly responsive advertising—promoting umbrellas on a rainy day, iced coffee during a heatwave, or flash sales in the evening. This dynamic capability transforms the sign from a passive poster into an active, context-aware communication tool.

In summary, the waterproof outdoor media LED display sign is a testament to engineering resilience. It is a complex system that balances the demanding requirements of high-fidelity visual performance with the unforgiving realities of the outdoor environment. It has become an indispensable tool for advertisers, a critical asset for public information, and a defining feature of the contemporary built environment. Its continued development focuses on making this powerful technology even more robust, efficient, and intelligent, ensuring its role as a luminous beacon of outdoor communication for years to come.

The design and construction of a waterproof outdoor media LED display is a masterclass in ruggedized engineering. It is a process that prioritizes durability, reliability, and weatherproofing above all else, without compromising on the optical performance required for captivating visual content. Every component, from the smallest screw to the largest cabinet, is meticulously selected and designed to form a cohesive system that can survive and thrive in the harshest of environments. This journey from raw materials to a finished, weather-tight display involves precision manufacturing, rigorous testing, and robust structural integration.

The foundation of weatherproofing lies at the module level. The LED modules are the building blocks of the display, and their design is the first line of defense. Unlike indoor modules, outdoor modules are housed in die-cast aluminum or other corrosion-resistant metal casings. This housing provides structural integrity and acts as a primary heat sink, drawing heat away from the sensitive LED chips and driver ICs. The front face of the module is a critical area. Here, the LEDs are not simply exposed; they are protected behind a layer of conformal coating or, more effectively, potted with a black epoxy or silicone resin. This potting process fills all the microscopic gaps between components on the PCB, creating a solid, waterproof, and dust-proof barrier that prevents corrosion and short circuits caused by humidity and water ingress.

The most visible protective element is the mask or face mask. This is a rubber or silicone gasket that fits over the front of the module, providing a snug, waterproof seal around each individual LED. This mask serves multiple purposes: it protects the LEDs from physical impact (e.g., hail, debris), it reduces glare from the sun by creating a black, non-reflective surface between pixels, and it enhances the contrast ratio of the display by preventing light from bleeding into adjacent pixels.

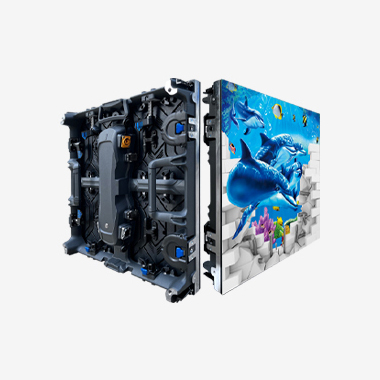

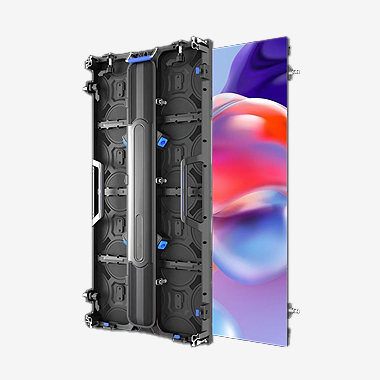

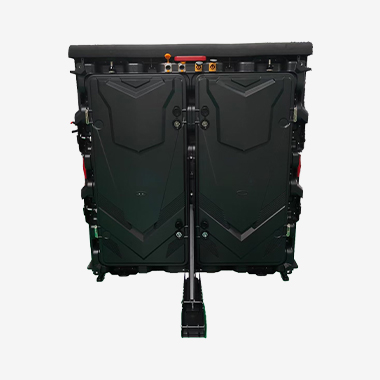

These hardened modules are then mounted into the core structural unit: the cabinet. Outdoor cabinets are engineered to be incredibly robust. They are typically constructed from heavy-gauge aluminum or aluminum alloy, chosen for its excellent strength-to-weight ratio, corrosion resistance, and superb thermal conductivity. The design of the cabinet is paramount for thermal management. Outdoor displays must manage heat generated by the LEDs and electronics while also being exposed to direct solar radiation. Cabinets are designed with massive internal heat sinks and often utilize active cooling systems with IP65-rated fans and dedicated air channels. These systems draw in cool air from the bottom of the cabinet and expel hot air from the top (convection cooling), but crucially, the cooling is done through labyrinthine pathways that are sealed from the internal electronics, preventing moisture and dust from entering while still allowing heat to escape. Some high-end designs use fully sealed passive cooling, relying solely on the cabinet's material and large surface area to act as a heat sink, eliminating moving parts that could fail.

The sealing of the cabinet is achieved through high-quality silicone gaskets and seals at every joint and access point. All service doors and cable entry points are designed with robust compression latches to ensure a continuous, water-tight seal. The connectors used for data and power are not standard consumer types; they are industrial-grade, waterproof connectors (e.g., IP67-rated circular metal connectors) that feature threaded locking collars and integrated rubber seals to prevent any moisture ingress at these critical points.

On-site, the cabinets are assembled into a larger structure. The supporting framework or truss that holds these cabinets is itself a major engineering project. It must be designed by structural engineers to withstand not only the significant dead weight of the display but also environmental live loads. This includes wind loads (a major concern for large, flat surfaces), snow loads, and seismic activity in certain regions. The framework is typically made from hot-dip galvanized steel to prevent rust and is anchored to a foundation that is specifically engineered for the local soil conditions and wind speed requirements.

Finally, the entire system is integrated with outdoor-rated ancillary equipment. This includes:

Outdoor Power Supplies: These are designed to operate in a wider temperature range and are housed in their own waterproof enclosures.

Environmental Monitoring Sensors: Advanced displays are equipped with internal sensors that monitor temperature, humidity, and water detection. If a fault is detected (e.g., overheating, water inside a cabinet), the system can automatically send alerts to maintenance staff and even take protective actions like dimming the screen to reduce heat.

Automated Brightness Controllers: A photocell sensor continuously measures the ambient light and automatically adjusts the display's brightness. This is essential for ensuring visibility in bright sunlight while avoiding being painfully bright at night, which also saves energy and extends the display's lifespan.

In conclusion, the design and construction of a waterproof outdoor LED display is a holistic process where environmental protection is the guiding principle. It is a multi-layered defense system—from the potted PCB and silicone masks at the micro level to the sealed cabinets and engineered structure at the macro level—all working in unison to create a visual instrument that is as tough as it is brilliant.

The working principles of a waterproof outdoor media LED display share the same core digital foundation as its indoor counterpart—data transmission, PWM control, and additive color mixing. However, every aspect of its operation is overseen and augmented by systems specifically designed to ensure reliability and stability in the face of environmental adversity. The primary goal is not just to show a picture, but to do so consistently and without failure, regardless of rain, extreme temperatures, or contamination.

The process begins with a weatherproofed content delivery system. The media player or computer source is typically housed in a separate, protected control room or within an IP-rated enclosure located near the display itself. This protects the sensitive source equipment from the temperature extremes and humidity that the display itself is built to endure. The video signal is then transmitted to the display via ruggedized, outdoor-rated cables. For longer distances, fiber optic cables are often preferred as they are immune to electromagnetic interference from lightning or power lines and can carry vast amounts of data over many kilometers without signal degradation.

This signal is received by the display's video processor, which is itself housed within one of the weatherproofed cabinets. The processor performs its standard functions of scaling the input signal to the native resolution of the LED wall and applying color calibration data. However, for outdoor displays, the processor also manages two critical, environment-specific tasks:

Automatic Brightness Control: The processor is connected to an ambient light sensor (photocell), which is mounted on the display in a location where it can accurately sample the surrounding light conditions. The processor uses this real-time data to dynamically adjust the overall brightness output of the entire display. On a bright sunny day, it will drive the LEDs to their maximum safe capacity to ensure visibility. At dusk, it will gradually dim the screen, and at night, it will operate at a significantly lower brightness level. This is not just for viewer comfort and energy savings; it is crucial for reducing light pollution and complying with local ordinances. More importantly, it directly extends the lifespan of the LEDs and power supplies by preventing them from running at maximum output 24/7, thereby reducing heat generation and component stress.

Environmental Monitoring and Protection: The processor is the central hub for data from various environmental sensors scattered throughout the display's cabinets. These sensors continuously monitor:

Internal Temperature: If the temperature inside a cabinet rises above a safe threshold (due to a fan failure, extreme ambient heat, or blocked vents), the processor can trigger an alarm and automatically reduce the brightness of the affected section to lower power consumption and heat generation, preventing thermal damage.

Humidity/Water Detection: Moisture detection sensors can trigger an immediate alarm if water is detected inside a cabinet, allowing for a rapid maintenance response before significant damage occurs.

The processor can be networked to send these alerts via email or SMS to maintenance teams, enabling proactive rather than reactive repairs.

Beyond the processor, the fundamental pixel-level operation remains based on Pulse-Width Modulation (PWM). Driver ICs on each module still switch the Red, Green, and Blue LEDs on and off at high frequencies to control brightness and create colors. However, the components used for this task in outdoor displays are selected for a wider operating temperature range (e.g., -40°C to +85°C) to ensure stable performance in both winter blizzards and summer heatwaves. The electrical characteristics of LEDs change with temperature; as they heat up, their forward voltage drops, which can lead to increased current draw and potential thermal runaway if not properly managed. The driver ICs and power systems in outdoor displays are designed with robust current regulation to compensate for these temperature-induced variations, ensuring consistent color and brightness output across the entire display regardless of the weather.

Power delivery is another area where reliability is paramount. Outdoor displays use industrial-grade switch-mode power supplies (SMPS) that are designed for high efficiency and high operating temperatures. These power supplies are often configured in a redundant or N+1 configuration. This means that if one power supply in a cabinet fails, the load is automatically shared by the remaining units, preventing any part of the display from going dark. This redundancy is a critical feature for a sign that is expected to operate continuously without downtime. All power connections are made with locking, waterproof connectors to prevent arcing or corrosion.

The data transmission between cabinets and modules also uses components rated for harsh environments. The PCBs are made with high-quality substrates that resist moisture absorption, and the data cables between cabinets are shielded and housed in protective conduits to prevent damage from UV radiation, physical abrasion, or wildlife.

In summary, the working principle of an outdoor waterproof LED display is one of managed resilience. It executes the same core digital functions as any other LED screen, but it does so within a protective, self-monitoring shell that is constantly adapting to its environment. It is a system that not only displays information but also listens to its own vital signs, making automatic adjustments to protect itself and sending out calls for help long before a minor issue becomes a catastrophic failure. This intelligent, proactive operational philosophy is what makes reliable 24/7 outdoor operation possible.

Deploying a full-color LED display in an outdoor environment is a high-stakes endeavor. The advantages it offers are transformative, but they come paired with significant challenges that must be meticulously managed. Understanding this dual perspective is crucial for anyone considering investment in this powerful medium.

Advantages:

Unrivaled Attention and Impact: The primary advantage is the ability to command attention in a competitive landscape. A large-format, brilliantly lit dynamic video screen is virtually impossible to ignore, especially when compared to static billboards. The use of motion, animation, and video creates emotional engagement and brand recall that static imagery cannot match, making it the ultimate tool for cutting through advertising clutter.

Dynamic, Real-Time Content Management: This is the game-changing feature. Content can be updated instantly and remotely from a central location. This enables:

Hyper-Relevant Advertising: Ads can be changed based on time of day (dayparting), weather conditions (e.g., sunscreen ads on sunny days, soup ads on cold days), live events, or even real-time traffic data.

Multiple Revenue Streams: A single screen can host a rotating schedule of ads for dozens of advertisers, maximizing the return on investment.

Live Information Broadcasting: The display can broadcast live news feeds, social media streams, sports scores, or emergency alerts, making it a vital community information resource.

Superior Performance in Sunlight: Specifically engineered for high brightness (often 5,000 to 10,000 nits or more), these displays remain perfectly visible even under direct sunlight, a condition that renders other technologies like LCDs completely washed out and unreadable.

Durability and Long-Term Reliability: When properly designed and manufactured, a waterproof outdoor LED display is built to last. Its ruggedized construction, corrosion-resistant materials, and environmental protection allow it to operate reliably for years, with a typical lifespan of 100,000 hours. This durability translates to a lower total cost of ownership over time despite the higher initial investment.

Brand Modernity and Prestige: Installing a state-of-the-art digital display projects an image of innovation, success, and modernity. For a corporation, it's a powerful branding statement. For a city or venue, it signifies progress and vibrancy.

Challenges and Considerations:

Substantial Initial Investment and Operating Costs: The upfront capital expenditure is significant. This includes not only the cost of the display itself but also the robust structural engineering, professional installation, electrical work, and potential permitting fees. Operating costs, primarily electricity consumption, are also considerable due to the high brightness required, though this is mitigated by automatic dimming features.

Technical Complexity and Specialized Maintenance: These are complex electronic systems operating in a harsh environment. Components will eventually fail. Maintenance requires highly specialized technicians who can safely work at height, diagnose electronic faults, and replace modules or components. Downtime can be very costly, so having a stock of critical spare parts and a comprehensive service contract is essential. Repairs are almost always more expensive and complex than for indoor signs.

Environmental and Regulatory Hurdles: The brightness and visual impact of these displays can lead to community concerns about light pollution, driver distraction, and aesthetic degradation. Navigating local government regulations and permitting processes can be a lengthy and complex challenge. Most municipalities have strict codes governing size, brightness (especially night-time levels), operating hours, and placement, which must be meticulously followed.

The Constant Battle Against the Elements: Despite their rugged design, these displays are in a perpetual state of defense. Beyond rain, they face threats from:

UV Radiation: Constant sun exposure can degrade seals and plastics over many years.

Thermal Cycling: Daily and seasonal expansion and contraction of materials can stress components and connections over time.

Wind Load: The physical force of wind on a large surface requires an expensive and robust supporting structure.

Contaminants: Dust, dirt, pollution, and even bird droppings can accumulate on the surface, requiring regular, specialized cleaning to maintain image quality and prevent damage.

Content Management Demands: The value of the dynamic screen is nullified by poor content. There is an ongoing need for a strategic content plan, professional video production, and creative design. Poorly designed or outdated content can negatively impact the brand it is meant to promote. This represents an ongoing operational cost and resource requirement.

Pixel Pitch and Viewing Distance Trade-off: The choice of pixel pitch has major cost implications. For a given viewing distance, a coarser pitch is more affordable, but the image will appear pixelated up close. A finer pitch provides a higher-quality image but at a exponentially higher cost. This decision must be carefully calculated based on the primary audience's expected viewing distance.

In conclusion, the advantages of outdoor waterproof LED displays are profound, offering unmatched impact and flexibility. However, these benefits are earned only by successfully overcoming significant challenges related to cost, maintenance, regulation, and environmental wear. A successful deployment requires careful planning, a long-term perspective, and partnerships with experienced and reputable vendors and service providers. The investment is substantial, but for those who navigate these challenges effectively, the returns in advertising revenue, brand value, and communication power can be extraordinary.

The application of waterproof outdoor LED technology has expanded far beyond the digital billboard, becoming an integral component of urban infrastructure, entertainment, and commerce. Its ability to provide reliable, dynamic visual communication in open environments has made it the go-to solution for a diverse range of needs. Concurrently, technological advancements are pushing the boundaries of its form and function, paving the way for an even more integrated and intelligent future.

Diverse Applications:

Digital Billboards and Outdoor Advertising (DOOH): This remains the most widespread application. Located on highways, urban centers, and transportation routes, these large-format displays are the revenue powerhouses of the outdoor advertising industry, offering targeted, rotating ads with unparalleled impact.

Sports and Entertainment Venues: Stadiums and arenas use massive outdoor LED displays as exterior marquees to promote events, show scores, and entertain crowds gathered outside. They are also used as the main jumbotron inside open-air stadiums, designed to withstand outdoor conditions while providing replays, stats, and fan engagement content.

Transportation Hubs and Public Information: Airports, train stations, and bus terminals rely on these displays for critical, real-time passenger information: schedules, gate changes, delays, and safety announcements. Their reliability is non-negotiable for the smooth operation of these facilities.

Corporate and Architectural Branding: Companies install large-format LED displays on the facades of their headquarters or flagship stores for brand building, corporate messaging, and to create an iconic architectural landmark. These "media facades" can transform a building's identity day and night.

Retail and Hospitality: Car dealerships, shopping malls, and casinos use outdoor LED signs to promote products, sales, and events, grabbing the attention of passing traffic and pedestrians.

Public Space and Municipal Use: Cities deploy these signs in public squares, parks, and along roadsides for community announcements, emergency alerts (AMBER alerts, weather warnings), cultural event promotions, and to enhance public safety.

Future Trends:

Increased Integration with Smart City Infrastructure: Outdoor LED displays will evolve from standalone signs into interconnected nodes within a smart city's IoT network. They will pull data from city systems to display real-time information on traffic congestion, public transportation wait times, parking availability, and air quality indexes, serving as holistic public information pillars.

Advanced Interactivity and Personalization: The integration of cameras and sensors (anonymously) will allow displays to become interactive. Future signs could respond to the demographics of a crowd, changing the language or product shown, or even allow for interaction via smartphones. For example, a pedestrian could use an app to request more information about an advertised product directly from the sign they are looking at.

Transparent and Flexible LED Technology: The development of weatherproof, flexible LED modules will continue. This will allow for curved, circular, and irregularly shaped displays that blend more seamlessly with architecture, moving beyond the flat rectangle. Transparent LED technology will also become more robust for outdoor use, enabling see-through displays on store windows and building lobbies without obstructing the view.

AI-Powered Content Optimization and Operations: Artificial Intelligence will play a larger role in both content management and operational efficiency. AI algorithms will automatically select and schedule content based on real-time data (weather, traffic, time of day) to maximize engagement and ROI. For operations, AI-driven predictive maintenance will analyze data from environmental sensors to forecast component failures before they happen, scheduling maintenance during off-hours to prevent unexpected downtime.

Enhanced Sustainability Focus: The drive for energy efficiency will intensify. This will be achieved through the development of more efficient LED chips, driver technologies, and power supplies. The use of solar panels to offset energy consumption will become more common. Furthermore, end-of-life recycling programs for LED modules and components will become a standard industry practice to reduce electronic waste.

Hyper-Realistic Resolution with MicroLED: The adoption of MicroLED technology will eventually reach the outdoor market. While currently cost-prohibitive, it promises to deliver ultra-fine pixel pitches for stunningly detailed images, potentially revolutionizing high-end outdoor advertising where close viewing distances are required, such as at pedestrian plazas or upscale retail districts.

In essence, the future of the waterproof outdoor LED display is one of greater intelligence, integration, and sustainability. It will become less of a standalone billboard and more of an interactive, context-aware information portal that is woven into the very fabric of the urban environment. Its ability to operate reliably outdoors ensures it will remain a critical and evolving medium for public communication and engagement.

6. Conclusion: The Enduring Pillar of Digital Outdoor Communication

The waterproof outdoor media LED display sign has firmly established itself as an enduring and indispensable pillar of modern communication. Its journey from a novel technological experiment to a robust, reliable, and ubiquitous medium is a testament to human ingenuity in overcoming environmental challenges. It stands as a powerful symbol of how technology can not only adapt to but also thrive within the demanding conditions of the natural world, providing a dynamic and vibrant link between information and the public sphere.

The success of this technology is rooted in its fundamental value proposition: the unmatched ability to deliver captivating, real-time visual content in the most exposed and attention-rich environments. It has redefined outdoor advertising, transforming it from a static, one-way monologue into a dynamic, responsive, and multi-voiced conversation. The advantages it offers—superior visibility, content flexibility, brand impact, and long-term durability—have proven so compelling that they justify the significant investment and complex logistics required for its deployment.

However, as we have seen, this capability is not achieved lightly. The design, construction, and operation of these displays are a continuous exercise in resilience engineering. They represent a delicate balance between optical performance and environmental fortification, between advanced electronics and rugged mechanics. The challenges of high initial cost, specialized maintenance, regulatory compliance, and the relentless wear of the elements are substantial and require a committed, strategic approach from investors, operators, and communities alike.

Looking forward, the role of the outdoor LED display is not static; it is rapidly evolving. It is transitioning from a simple broadcast tool to an intelligent, connected node in the growing ecosystem of smart cities and the Internet of Things. Trends like AI-driven content, deeper integration with urban data networks, interactive capabilities, and more sustainable designs point toward a future where these displays are not just on the street but are an integral part of the street's intelligence. They will provide not just advertisements but also vital public services, safety information, and community engagement, all while managing their own health and energy consumption with increasing autonomy.

In conclusion, the waterproof outdoor media LED display is more than just a sign. It is a resilient platform for commerce, a critical tool for public information, and a dynamic element of modern architecture. It has weathered the storm, literally and figuratively, to become a trusted and powerful medium. Its future is bright, defined by greater intelligence, deeper integration, and a more thoughtful relationship with the environment and the community it serves. It is a definitive technology of our time, illuminating our outdoor spaces and shaping the way we communicate in the public realm for the foreseeable future.
