The landscape of modern advertising and public information dissemination has been profoundly transformed by the advent of Outdoor Light Emitting Diode (LED) display billboards. These dynamic, digital signs have become an iconic feature of urban skylines and, more critically, a mainstay along the vast networks of highways that connect cities and countries. Far more than just static signs, these high-tech billboards are powerful communication tools that blend cutting-edge technology with strategic marketing and essential public service functionality.

An outdoor LED billboard is essentially a large-scale, modular screen composed of thousands of individual LED modules. Each module contains a dense array of light-emitting diodes (red, green, and blue) that act as pixels. By controlling the intensity of these colored diodes, the board can generate millions of colors and display full-motion video, high-resolution images, and scrolling text. This dynamic capability is a quantum leap from the printed vinyl of traditional billboards, offering unparalleled flexibility and impact.

The application of this technology on highways is particularly significant due to the unique environment and audience. Highways represent a high-traffic, high-speed corridor with a captive audience of drivers and passengers. The primary challenge and goal are to capture attention and convey a message quickly, effectively, and, above all, safely. These displays are engineered for this specific context, designed to be viewed from great distances and processed in a matter of seconds.

The core components of a highway LED billboard system include the LED display panel itself, a robust structural frame and mounting system (often designed to withstand extreme weather conditions), a powerful control system (both hardware and software), and a communication link (typically via Ethernet, fiber optic, or cellular networks) that allows for remote content management and scheduling. This infrastructure enables advertisers and authorities to change messages instantly from a central location, a feature that is invaluable for time-sensitive advertising, emergency alerts, or real-time traffic updates.

The evolution of this technology has been driven by several factors: the decreasing cost of LED technology, advancements in brightness and energy efficiency, and the growing demand for more engaging and measurable advertising mediums. For businesses, they offer a potent blend of broad reach and targeted local impact, with the ability to day-part messages (e.g., showing coffee ads in the morning and restaurant ads in the evening). For government and transportation authorities, they are indispensable tools for promoting road safety, issuing Amber alerts, and managing traffic flow by warning drivers of accidents, congestion, or adverse weather conditions ahead.

In essence, the outdoor LED billboard on the highway is a nexus of technology, commerce, and public welfare. It is a testament to how digital innovation can be harnessed to serve multiple purposes in a critical public space, transforming passive stretches of road into interactive channels of information and engagement. As we delve deeper into their design, workings, and applications, it becomes clear that these displays are not merely advertisements; they are a fundamental component of the intelligent transportation ecosystem.

The design and construction of an outdoor LED billboard for highway use is a feat of engineering that prioritizes three non-negotiable criteria: structural integrity, environmental resilience, and visual performance. Unlike indoor displays, these units must operate 24/7 in some of the harshest conditions imaginable, from blistering sun and torrential rain to freezing ice and hurricane-force winds. Every component, from the smallest diode to the massive steel support structure, is selected and assembled to meet these extreme demands.

1. The Structural Framework:

The foundation of any highway billboard is its structure. Typically constructed from high-grade galvanized steel or aluminum, the frame must be engineered to support not only the significant weight of the LED panels but also to resist constant wind loading and vibration from high-speed traffic below. Engineers use sophisticated modeling software to calculate wind shear and stress points, ensuring the structure can withstand wind speeds often exceeding 120-150 mph. The structure includes deep foundations, often using concrete piers that extend deep into the ground to provide a stable and immovable anchor.

2. The LED Cabinet and Modules:

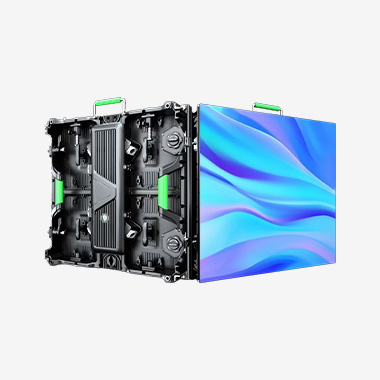

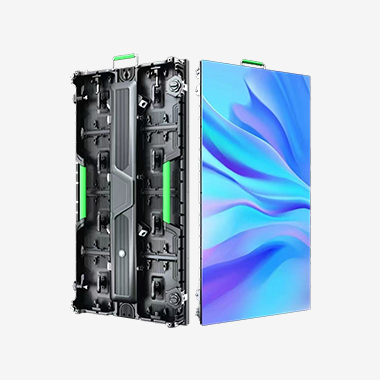

The display itself is not a single monolithic unit but is built from multiple sealed, aluminum alloy cabinets locked together to form a seamless screen. Each cabinet is itself a self-contained unit housing dozens of LED modules, power supplies, and data processing hardware. This modular design is crucial for several reasons: it simplifies manufacturing and transportation, allows for easier maintenance and repair (a single module can be replaced without taking the entire board offline), and provides scalability for different sign sizes.

The front of the cabinet is fitted with the LED modules. The key specifications of these modules define the display's quality:

Pixel Pitch: This is the distance (in millimeters) between the centers of two adjacent pixels. For highway applications, where viewers are at a significant distance and moving quickly, a larger pixel pitch (e.g., P10, P16, P20) is used. This provides sufficient clarity without the unnecessary cost and power consumption of a tighter, higher-resolution pitch used for closer viewing.

LED Configuration: High-brightness SMD (Surface-Mounted Device) LEDs are the industry standard. In an SMD pixel, the red, green, and blue diodes are packaged together, allowing for a higher density of pixels, better color mixing, and a wider viewing angle.

Cabinet Rating: Cabinets are rated with an Ingress Protection (IP) code, such as IP65 or IP67. This signifies a completely dust-tight enclosure (the "6") and protection against low-pressure water jets ("5") or temporary immersion ("7"). This sealing is vital for preventing moisture and dust ingress, the primary killers of electronic components.

3. The Control System:

Nested within the cabinet is the electronic heart of the billboard. This includes:

Receiving Cards: These act as the communication bridge, taking the video signal from the main controller and distributing it to the modules.

HUB Boards / Sending Cards: These are responsible for driving the LEDs on the modules, controlling the power and data to each individual pixel.

Power Supply Units (PSUs): High-efficiency, switching-mode power supplies convert the incoming AC mains power to the low-voltage DC power required by the LEDs. Their efficiency is critical to reducing operational costs and heat generation.

4. Environmental Management:

A critical but often overlooked aspect of design is thermal management. LEDs generate heat, and excessive heat reduces their lifespan and color accuracy. Highway billboards use passive cooling (heat sinks), active cooling (fans), or a combination of both. In colder climates, heating elements may be installed to prevent snow and ice accumulation on the screen surface, which can obstruct the view and add dangerous weight.

In summary, the construction of a highway LED billboard is a meticulous process that balances optical science, structural engineering, and rugged industrial design. It results in a robust, intelligent system built not for a controlled environment, but for the relentless, exposed world of the open road.

The magic of an LED billboard—transforming a digital file on a computer into a brilliant, moving image visible from hundreds of meters away—is governed by a precise and coordinated set of working principles. It is a symphony of data transmission, processing, and light emission, all happening in milliseconds.

1. Content Creation and Scheduling:

The process begins off-site with content creation. Using specialized software, designers create vibrant, high-contrast videos and images optimized for the specific billboard's resolution and size. Crucially, content for highway signs must be designed for ultra-short viewer dwell time; messages must be simple, with large fonts and bold graphics. This content, along with a playback schedule, is then uploaded to a central content management server (often cloud-based).

2. Data Transmission:

The billboard's on-site controller is connected to this server via a reliable communication link. While Ethernet or fiber optic connections are preferred for their speed and stability, 4G/5G cellular modems are increasingly common due to their ease of installation and reliability. The controller automatically checks the server and downloads the scheduled content playlist, storing it in its local memory. This ensures the billboard can continue operating even if the communication link is temporarily lost.

3. On-Site Processing and Display:

This is where the real-time processing happens. The heart of the on-site system is the video processor or controller. Its job is to take the video signal and prepare it for the unique canvas of the LED display. It performs critical tasks like:

Resolution Scaling: Matching the native resolution of the content to the native resolution of the LED wall.

Color Calibration: Ensuring color consistency and accuracy across the entire display, compensating for variations between different LED modules and cabinets.

Brightness Control: Automatically adjusting the screen's brightness based on ambient light conditions, using a photocell sensor. This is vital for highway safety—the screen must be bright enough to be visible in direct sunlight but must not dazzle drivers at night.

The processed signal is then broken down and distributed. The controller sends data to multiple receiving cards (one or more per cabinet), which further dissect the signal and send it via ribbon cables to the HUB boards on each individual LED module. These HUB boards contain dedicated driver ICs (Integrated Circuits) that are the final arbiters of light. They receive the data packet for their section of the screen and precisely control the pulse-width modulation (PWM) of current to each red, green, and blue sub-pixel.

4. Light Emission: Pulse-Width Modulation (PWM)

PWM is the fundamental technique for controlling LED brightness and color. Instead of varying the analog voltage to an LED (which is inefficient), the driver IC rapidly switches the LED on and off. The human eye perceives this rapid cycling as a sustained glow. The ratio of the "on" time to the "off" time within each cycle (the duty cycle) determines the perceived intensity. A 50% duty cycle appears half as bright as a 100% duty cycle.

For Brightness: A higher duty cycle across all LEDs results in a brighter overall image.

For Color: To create the color yellow, for instance, the red and green diodes would be pulsed at a 100% duty cycle, while the blue diode would be turned off (0% duty cycle). To create a pastel pink, the red diode would be pulsed at a high duty cycle, the blue at a very low one, and the green perhaps not at all. By independently controlling the PWM for each of the millions of RGB diodes on the screen, the system can generate the full spectrum of colors and the grayscale necessary for detailed imagery.

This entire process—from data transmission to the precise switching of microscopic diodes—happens continuously at a high refresh rate (typically >1920Hz for modern displays). A high refresh rate is essential to eliminate flickering, which can be distracting and dangerous for drivers, and to ensure smooth video playback without blurring during fast motion. The result is a cohesive, brilliant, and dynamic visual message that can be updated in an instant, making the highway LED billboard a masterpiece of real-time, large-scale digital communication.

The proliferation of LED billboards on highways is driven by a compelling set of advantages over traditional static signage. However, this technology is not without its significant challenges and criticisms, creating a complex landscape that industry, regulators, and the public must navigate.

Advantages:

Dynamic Content and Flexibility: This is the single greatest advantage. Advertisers can run multiple ads in a loop, day-part their messaging, and launch immediate, time-sensitive campaigns (e.g., a flash sale at the next exit). This maximizes the utility and revenue potential of the advertising space. For authorities, it enables real-time public communication, which is impossible with static signs.

High Impact and Engagement: Full-motion video and vibrant graphics are far more attention-grabbing than static images. This increased engagement leads to higher brand recall and message retention among the audience, making it a highly effective advertising medium.

Remote Management and Efficiency: Content can be changed instantly from a remote office anywhere in the world. This eliminates the cost, time, safety risks, and environmental impact associated with sending a crew to physically install new printed vinyl on a towering highway structure.

Environmental Benefits (vs. Traditional Printing): While they consume electricity, LED billboards eliminate the waste generated by the frequent printing, shipping, and disposal of vinyl sheets and the chemicals used in their production. Advances in energy-efficient LEDs and solar power options are further reducing their carbon footprint.

Revenue Generation and Public Service: For municipalities and transportation departments, leasing space for digital billboards generates significant revenue that can be reinvested into road maintenance and public services. Furthermore, many jurisdictions mandate that these signs be made available for emergency alerts (AMBER, Silver), traffic advisories, and weather warnings, providing an invaluable public safety tool.

Measurability: Digital platforms allow advertisers to measure impressions and tailor campaigns based on time of day and traffic data, bringing a level of analytics to outdoor advertising that was previously unavailable.

Challenges and Criticisms:

Driver Distraction and Safety: This is the most serious and debated challenge. Critics argue that the bright, moving, and often complex visuals can divert a driver's attention from the road. The concern is that even a split-second of distraction at highway speeds can have catastrophic consequences. The industry counters this by adhering to strict brightness limits (automatically dimmed at night), limiting transition effects (e.g., no quick flashes or swipes), and mandating short, simple message durations. Research on the direct link to accidents remains inconclusive, but the perceived risk is a major regulatory hurdle.

Light Pollution and Visual Blight: The intense light from these billboards can contribute to skyglow, affecting astronomers and disrupting natural ecosystems for nocturnal wildlife. Furthermore, many communities and environmentalists view them as a form of visual pollution that detracts from the natural landscape and creates a cluttered, commercialized environment.

Energy Consumption: Despite improvements, a large LED billboard is a significant consumer of electricity. A single large-format sign can consume as much power as dozens of average American homes. While this is often offset by the removal of printing waste, the direct energy draw remains a concern, especially in regions reliant on non-renewable energy sources.

Regulatory and Zoning Battles: The installation of new digital billboards is often met with strong opposition from community groups and is subject to complex local zoning laws and federal highway regulations (e.g., the Highway Beautification Act in the U.S.). Navigating this legal and political landscape can be a lengthy and expensive process for sign companies.

Initial Cost and Maintenance: The upfront capital investment for a highway-grade LED billboard is substantial, running into hundreds of thousands of dollars. While operational costs are lower than maintaining static signs, they require specialized technical expertise for repairs, and component failure (especially power supplies in harsh conditions) is a constant operational reality.

In conclusion, the advantages of dynamic communication, efficiency, and public service are powerful drivers for the technology. However, the industry must continuously address the legitimate challenges of safety, environmental impact, and community acceptance through technological innovation, responsible self-regulation, and proactive engagement with stakeholders.

While commercial advertising is the primary economic engine behind highway LED billboards, their applications are expanding into broader, more intelligent roles within the transportation ecosystem. Concurrently, technological trends are poised to make them smarter, more efficient, and more integrated than ever before.

Expanding Applications:

Intelligent Transportation Systems (ITS): This is the most significant growth area. LED billboards are evolving into key nodes in ITS networks. They are being integrated with traffic sensors, weather stations, and surveillance cameras to provide real-time, hyper-local information:

Dynamic Traffic Management: Displaying accurate travel times, warning of congestion ahead, and suggesting alternative routes.

Hazard Warnings: Alerting drivers to black ice, heavy fog, high winds, or accidents minutes before they encounter them.

Emergency Alerts: Serving as a primary channel for law enforcement to broadcast AMBER Alerts, Silver Alerts, and critical security information to a massive audience instantaneously.

Public Information and Community Messaging: Governments use them for non-emergency messaging, such as promoting public health campaigns, notifying citizens of major events causing traffic delays, and encouraging safe driving behaviors (e.g., "Click It or Ticket").

Hyper-Local and Contextual Advertising: With integration into GPS and traffic data systems, future billboards could deliver incredibly targeted ads. For example, a sign could display a coffee shop ad only when traffic speed data suggests drivers are in a morning commute pattern, or show an ad for a specific gas station or restaurant at the next exit, complete with real-time fuel prices or wait times.

Integration with Connected and Autonomous Vehicles (CAVs): This represents the frontier of application. LED signs could transmit standardized machine-readable data signals (e.g., via DSRC or C-V2X protocols) directly to the onboard computers of connected cars. This would allow the vehicle itself to process the information (e.g., "congestion ahead") and alert the driver or, in the case of an autonomous vehicle, automatically adjust its driving path and speed for safety and efficiency.

Future Trends:

Higher Efficiency and Sustainability: The drive for lower operational costs and a smaller carbon footprint will continue. This includes:

Advanced LEDs: Development of diodes that produce more light (lumens) per watt of energy consumed.

Solar Integration: More billboards will be fitted with integrated solar panels and battery storage systems to offset grid power consumption, potentially becoming energy-neutral or even energy-positive.

Improved Visuals with Smaller Pixel Pitches: As technology costs decrease, we will see the adoption of tighter pixel pitches (e.g., P6, P8) on highways, enabling higher-resolution content and more detailed information to be displayed clearly, even as viewing distances remain large.

Advanced Interactivity and Data-Driven Content: While currently limited, the future may hold limited interactivity. For instance, a billboard could display a count of available parking spaces at a nearby venue sourced from a live API. Content will be increasingly managed by algorithms that pull in real-time data from various sources to create the most relevant message for the moment.

Enhanced Durability and "Self-Healing" Systems: Future designs will focus on even greater resilience. This could include conformal coatings that protect circuitry from moisture and corrosion, more advanced passive cooling systems to eliminate failure-prone fans, and built-in diagnostic systems that can predict component failure before it happens and alert maintenance crews.

Stricter Regulation and Standardization: In response to safety concerns, future regulations will likely become more uniform and stringent, governing not just brightness but also content type, display duration, and transition styles. This will push the industry towards even safer design principles.

The highway LED billboard of the future will be less of a simple advertising placard and more of an intelligent, interactive, and integrated communication portal—a vital sensory organ for the smart road of tomorrow.

 Conclusion

The outdoor LED display billboard has firmly established itself as a transformative feature of the modern highway. It represents a successful convergence of optical technology, data networking, and rugged engineering, creating a medium that is as dynamic as the traffic flowing past it. From its humble beginnings as a novel replacement for static vinyl, it has evolved into a multifaceted tool that serves the dual—and sometimes competing—interests of commerce and public safety.

The journey through its overview, design, principles, and applications reveals a technology of remarkable sophistication. Its strength lies in its core ability to communicate and adapt in real-time. This flexibility is its greatest asset, enabling everything from captivating brand stories that fuel local economies to critical, life-saving alerts that protect motorists. The remote management capabilities have revolutionized the outdoor advertising industry, making it more efficient, responsive, and measurable.

However, this journey also highlights a path fraught with challenges. The concerns over driver distraction are not to be taken lightly; they represent a serious ethical and regulatory imperative for the industry. The balance between capturing attention and compromising safety is a delicate one that requires ongoing research, responsible practices, and thoughtful legislation. Similarly, the issues of energy consumption and light pollution demand continuous technological innovation to ensure that these signs are not just effective, but also sustainable and respectful of their environment.

Looking forward, the future of the highway LED billboard is not one of stagnation but of integration and intelligence. Its role is expanding beyond advertising to become a cornerstone of Intelligent Transportation Systems. The potential for integration with connected vehicle ecosystems promises a new era where information flows seamlessly from infrastructure to vehicle, enhancing safety and efficiency on an unprecedented scale. The billboard is becoming a two-way conduit in a larger conversation between the road and its users.

In conclusion, the outdoor LED billboard is far more than a sign; it is a dynamic and powerful platform. Its continued success will depend on the industry's ability to navigate its challenges with responsibility and its capacity to harness new technologies for greater public good. As highways become smarter, these digital sentinels will undoubtedly play a pivotal role, guiding, informing, and connecting us on the road ahead. They are a definitive feature of our contemporary landscape and a promising tool for building a safer, more informed, and more efficient transportation future.
