A large LED display visual video wall system is a high-performance, modular digital display solution designed to create seamless, large-scale visual experiences for both indoor and outdoor environments. Unlike individual LED screens or small video walls, this system integrates dozens to hundreds of LED panels into a unified display, capable of spanning meters in width and height—making it ideal for applications where impactful, high-visibility visuals are critical, such as command centers, stadiums, shopping malls, and concert venues.

At its core, the system combines three key components: LED display panels (the primary visual output), a control system (to manage content and synchronization), and a structural support framework (to secure the panels in place). The defining feature of a large LED video wall is its ability to deliver consistent, high-quality visuals across the entire display—with no visible gaps between panels (thanks to precise alignment) and uniform brightness/color (achieved through calibration). Key specifications vary by use case: pixel pitch ranges from 0.9mm (for close-range indoor use, like control rooms) to 10mm+ (for outdoor stadiums), while brightness typically spans 1,500–10,000 nits (higher for outdoor environments to combat sunlight glare).

In recent years, the adoption of large LED video wall systems has accelerated, driven by advancements in LED technology (such as smaller pixel pitches and higher energy efficiency) and the growing demand for immersive visual experiences. For example, modern control centers—like those used in air traffic management or emergency response—rely on these systems to display real-time data, maps, and surveillance feeds in a single, easy-to-monitor interface. In retail, large video walls in shopping mall atriums showcase dynamic advertisements and brand stories, capturing the attention of shoppers and driving foot traffic to stores.

The system’s versatility is another key strength: it supports a wide range of content formats, including 4K/8K videos, interactive touch inputs, real-time data streams, and even multi-source content (e.g., splitting the wall to show a live feed, a presentation, and a social media feed simultaneously). As digital transformation continues across industries—from entertainment and retail to healthcare and transportation—the large LED display visual video wall system remains a cornerstone technology, enabling organizations to communicate, engage, and inform audiences in more impactful ways than ever before.

The design and construction of a large LED display visual video wall system require meticulous planning, engineering precision, and adherence to industry standards to ensure the final product meets performance, safety, and aesthetic requirements. Every phase—from component selection to installation—must account for the system’s intended use (indoor vs. outdoor), environment (temperature, humidity, lighting), and content needs (resolution, interactivity).

Component Selection: The Foundation of Performance

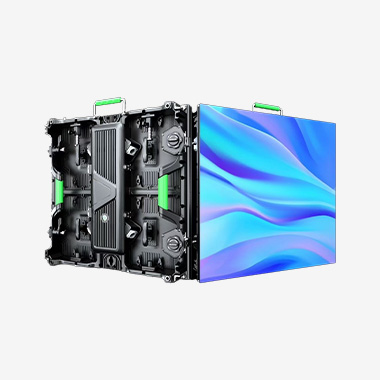

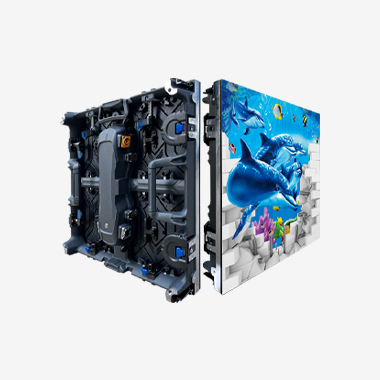

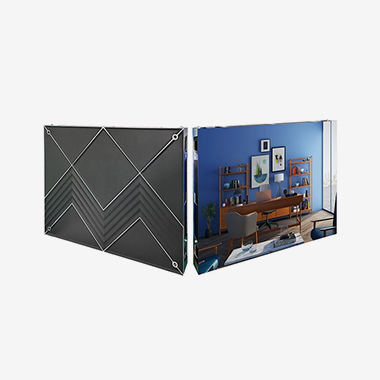

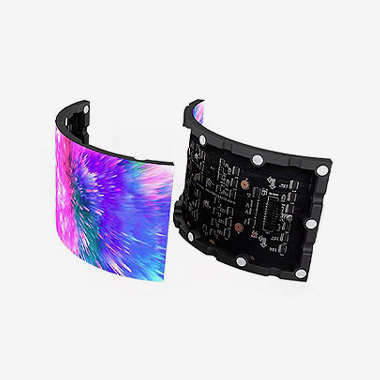

The LED panels are the most critical component, and their design varies based on the system’s application. Indoor panels prioritize fine pixel pitches (0.9–3mm) for sharp close-range viewing and lower brightness (1,500–3,000 nits) to avoid eye strain, while outdoor panels feature larger pixel pitches (4–10mm+) and higher brightness (5,000–10,000 nits) to withstand sunlight. Panel housings are constructed from lightweight, durable materials: indoor panels use aluminum alloy frames for portability, while outdoor panels add weatherproof coatings (e.g., IP65/IP68 ratings) and corrosion-resistant metals to protect against rain, dust, and UV radiation. Each panel also includes a receiving card that processes content signals and a power module optimized for energy efficiency.

The control system is the “brain” of the video wall, consisting of a media server, sending cards, and software. The media server handles content processing—scaling, cropping, and synchronizing videos, images, or data feeds—to match the wall’s total resolution (e.g., a 10x5 panel wall with 2mm pixel pitch has a resolution of 5,120x2,560). Sending cards distribute the processed content to individual panels, ensuring no lag or synchronization issues (critical for live events or real-time data). The control software, often cloud-based, allows users to manage content remotely, adjust brightness/color, and troubleshoot issues via a user-friendly dashboard.

Structural Design: Safety and Stability

The structural support framework is tailored to the system’s size and installation location. For indoor wall-mounted systems (e.g., control rooms), the framework uses aluminum or steel rails mounted to the wall with heavy-duty anchors, ensuring the structure can support the weight of the panels (typically 2–5kg per panel). For free-standing indoor systems (e.g., mall atriums), the framework includes a stable base with weighted plates to prevent tipping, while outdoor systems (e.g., stadium scoreboards) use steel trussing or concrete foundations to withstand wind loads (up to 120km/h) and extreme temperatures (-30°C to 60°C).

Cable management is another key design element. Power and data cables are routed through the framework’s internal channels to avoid visibility and reduce tripping hazards. Outdoor systems add waterproof cable connectors (e.g., M12 IP68 connectors) to prevent moisture ingress, while indoor systems use fire-retardant cables to comply with building safety codes.

Installation and Calibration: Ensuring Seamless Performance

Installation begins with a site survey to verify the location’s structural integrity, power capacity, and environmental conditions. Technicians then assemble the framework, ensuring it is level and aligned to avoid visual distortion. Panels are mounted to the framework using quick-locking mechanisms, with alignment pins ensuring no gaps between panels (typically <0.5mm). Once panels are installed, the system undergoes rigorous calibration: color uniformity calibration uses specialized cameras to adjust each panel’s RGB levels, ensuring consistent color across the wall; brightness calibration matches panel brightness to the environment; and pixel mapping identifies and compensates for dead pixels (a common issue in large systems).

For interactive systems (e.g., touch-enabled walls), additional steps include installing infrared or capacitive touch sensors across the panel surfaces and calibrating the touch response to ensure accuracy. Finally, the entire system is tested for performance: content playback (to check for lag or distortion), power stability (to verify no voltage fluctuations), and emergency shutdowns (to ensure compliance with safety standards). This comprehensive design and construction process ensures the large LED display visual video wall system delivers reliable, high-quality performance for its intended lifespan (typically 5–10 years).

The working principle of a large LED display visual video wall system revolves around the coordinated operation of hardware components and software to convert digital content into a seamless, high-quality visual output across multiple LED panels. This process can be broken down into four key stages: content processing, signal transmission, panel activation, and quality control—each designed to ensure the system delivers consistent, lag-free performance.

Stage 1: Content Processing – Preparing Data for Display

The process begins with the media server, which receives content from external sources (e.g., laptops, cameras, streaming services, or data platforms). The server’s software first processes the content to match the video wall’s specifications: it scales the content to fit the wall’s total resolution (e.g., a 8x4 panel wall with 1.2mm pixel pitch has a resolution of 6,827x3,413), adjusts aspect ratios to avoid stretching, and synchronizes frame rates (typically 60fps for smooth video playback). For multi-source content (e.g., splitting the wall into three sections), the server uses a “windowing” feature to allocate specific areas of the wall to each content source, ensuring no overlap or interference.

The server also applies image enhancement algorithms: dynamic contrast adjustment to improve visibility in varying lighting conditions, noise reduction for low-quality video feeds, and color calibration to match industry standards (e.g., Rec. 709 for video, sRGB for images). This processing ensures the content is optimized for the LED panels’ capabilities, maximizing visual clarity and impact.

Stage 2: Signal Transmission – Delivering Content to Panels

Once processed, the content is sent to sending cards—devices that split the high-resolution content into smaller, panel-sized “data packets.” Each sending card is responsible for a section of the video wall (e.g., a 2x2 panel quadrant), reducing the load on individual cables and preventing signal degradation. The data is transmitted to the panels via high-speed cables: indoor systems use Cat6 Ethernet cables (for distances up to 100m) or fiber optic cables (for longer distances), while outdoor systems add waterproof cable jackets and shielded connectors to protect against environmental damage.

A critical feature of this stage is “redundant transmission”: the system sends duplicate data streams to each panel, ensuring that if one cable fails, the backup stream maintains content playback without interruption. This is especially important for mission-critical applications like control rooms or emergency response centers, where downtime is unacceptable.

Stage 3: Panel Activation – Converting Data to Light

Each LED panel contains a receiving card that decodes the incoming data packets and converts them into electrical signals for the panel’s RGB LED chips. The receiving card uses Pulse-Width Modulation (PWM) to control the brightness and color of each chip: PWM rapidly turns the LED on and off (at frequencies >1,000Hz, faster than the human eye can detect), with the “on” pulse duration determining brightness (longer pulses = higher brightness). By adjusting the PWM pulses of the red, green, and blue sub-pixels, the receiving card creates millions of color combinations (via the additive color model)—for example, equal pulses of red and green produce yellow, while all three at full intensity create white.

The panel’s power module ensures a stable voltage supply to the LEDs, preventing flickering or brightness fluctuations. For outdoor panels, temperature sensors trigger cooling fans or heating elements to maintain the LEDs’ optimal operating temperature (20–40°C), as extreme temperatures can degrade performance or shorten lifespan.

Stage 4: Quality Control – Maintaining Seamless Performance

Throughout operation, the system’s control software monitors performance in real time. It checks for dead pixels (using pixel mapping) and automatically compensates by adjusting neighboring pixels to mask the issue. It also monitors power consumption, cable connectivity, and panel temperature, sending alerts to users if anomalies are detected (e.g., a panel overheating or a cable disconnect). For interactive systems, touch sensors send input data back to the media server, which processes the touch (e.g., tapping a button on the wall) and triggers the corresponding action (e.g., opening a new content window).

By integrating these four stages, the large LED display visual video wall system delivers a seamless, high-quality visual experience—whether displaying a 4K movie in a theater, real-time data in a control room, or interactive ads in a mall.

Large LED display visual video wall systems offer significant advantages that make them a preferred choice for high-impact visual applications, but they also face inherent challenges that organizations must address during planning and deployment.

Key Advantages

1. Superior Visual Performance

The most notable advantage is their exceptional visual quality. With fine pixel pitches (down to 0.9mm), high brightness (up to 10,000 nits), and wide color gamuts (covering 90%+ of DCI-P3 for cinema-grade colors), these systems deliver sharp, vibrant visuals even in challenging environments. For example, an indoor video wall in a luxury retail store with 1.2mm pixel pitch can display product details—like fabric textures or jewelry sparkle—with stunning clarity, while an outdoor stadium wall with 6mm pixel pitch remains visible in direct sunlight, ensuring fans in the upper tiers can see replays and scores clearly.

2. Scalability and Flexibility

Large LED video walls are modular, meaning organizations can easily expand or reconfigure the system by adding/removing panels. This scalability is ideal for growing needs: a small control room might start with a 4x3 panel wall and expand to 6x4 as operations grow. The systems also support flexible aspect ratios—from wide-format (16:9) for videos to custom shapes (e.g., curved, L-shaped) for unique spaces like museum galleries or airport terminals. This flexibility ensures the system adapts to the venue, not the other way around.

3. Durability and Long Lifespan

LED technology is inherently durable: LED chips have a lifespan of 50,000–100,000 hours (5–10 years of continuous use), far longer than LCD or projection-based systems. Outdoor systems add weatherproofing (IP65/IP68) and corrosion resistance, enabling them to operate in rain, snow, or coastal salt spray without degradation. This durability translates to lower maintenance costs: unlike projectors (which require bulb replacements every 2,000–5,000 hours), LED walls need only occasional cleaning and minor component repairs.

4. Versatile Content Support

These systems handle diverse content types with ease: 4K/8K videos, real-time data streams (e.g., stock prices, weather), interactive touch inputs, and multi-source content. For example, a corporate lobby video wall can split its display to show a company video, a live feed of the CEO’s speech, and a social media feed of employee highlights—all simultaneously. This versatility makes the system suitable for multiple use cases within the same organization (e.g., a university using the same wall for lectures, sports events, and graduation ceremonies).

Key Challenges

1. High Initial Cost

The upfront cost is a major barrier: a large LED video wall can cost \(10,000–\)100,000+ depending on size and pixel pitch. For example, a 10x5 panel indoor wall with 1.2mm pixel pitch (total resolution 5,120x2,560) can cost $50,000+, including panels, control system, and installation. While long-term maintenance costs are low, the initial investment can deter small-to-medium enterprises (SMEs) or organizations with limited budgets.

2. Installation Complexity

Installing a large LED video wall requires specialized labor and equipment. Technicians must ensure precise panel alignment (to avoid gaps), structural stability (to support the wall’s weight), and proper cable management (to prevent signal issues). For outdoor systems, additional steps like weatherproofing and wind load testing add time and cost. A large stadium wall installation, for example, may require cranes, scaffolding, and coordination with venue management—extending the timeline to 2–4 weeks.

3. Power Consumption and Heat Management

While LED technology is energy-efficient compared to older displays, large systems still consume significant power: a 100-square-meter outdoor wall can use 5–10kW of electricity, increasing operating costs. Heat generated by the panels also requires management: indoor systems need ventilation or air conditioning to prevent overheating, while outdoor systems use fans or heat sinks. In locations with high electricity costs (e.g., urban centers), these ongoing expenses can add up over time.

4. Viewing Angle Limitations (for Some Panels)

While modern LED panels have improved viewing angles (up to 160° horizontal/vertical), some low-cost panels may experience color shifting or brightness loss when viewed from extreme angles. This can be problematic in large venues like concert halls, where audience members may be seated to the side of the wall. To mitigate this, organizations must invest in high-quality panels with wide viewing angles—a choice that increases costs.

Large LED display visual video wall systems are deployed across a wide range of industries, each leveraging the technology’s unique strengths to enhance communication, engagement, and operations. As innovation accelerates, future trends promise to expand the system’s capabilities and open new use cases.

Key Current Applications

1. Control and Command Centers

In industries like air traffic management, emergency response, and cybersecurity, large LED video walls serve as central hubs for monitoring real-time data. For example, a national cybersecurity center might use a 8x4 panel wall with 1mm pixel pitch to display network traffic maps, threat alerts, and surveillance feeds simultaneously—allowing analysts to identify and respond to breaches quickly. The system’s high resolution and multi-source support ensure critical information is visible and accessible at a glance, reducing decision-making time in high-pressure situations.

2. Entertainment and Live Events

Stadiums, concert venues, and theaters rely on large LED video walls to enhance the audience experience. Sports stadiums use outdoor walls (6–10mm pixel pitch) as scoreboards and replay screens, while indoor concert venues use curved or wrap-around walls (2–4mm pixel pitch) to create immersive visual backdrops synced with music. For example, a music festival might use a 12x6 panel wall to display live camera feeds of the artist, interactive graphics, and audience social media posts—turning a passive concert into an engaging, multi-sensory experience. Theaters also use the systems for digital set design: a single wall can transform from a forest to a city skyline in seconds, eliminating the need for physical set changes and reducing production costs.

3. Retail and Advertising

In shopping malls, department stores, and airports, large LED video walls are powerful advertising tools. A mall atrium might feature a 10x3 panel wall (3–5mm pixel pitch) displaying dynamic ads for luxury brands, while a grocery store could use a smaller wall (4x2 panel) to show recipe videos and promotional offers. The systems’ ability to support interactive content also drives engagement: a clothing store might install a touch-enabled wall that allows customers to “try on” outfits virtually, increasing the likelihood of purchase. For advertisers, the walls offer higher visibility than traditional billboards, with studies showing digital video ads capture 3x more attention than static ads.

4. Healthcare and Education

In healthcare, large LED video walls are used in hospitals and medical centers for training, patient education, and surgery visualization. A medical school might use a 6x3 panel wall (1.5mm pixel pitch) to display high-resolution 3D models of the human body during lectures, while a hospital operating room could use a sterile wall to show real-time surgical feeds to students in an adjacent classroom. In education, universities and schools use the systems for large-scale lectures, virtual field trips, and collaborative learning—for example, a science class might use a wall to explore a  3D simulation of the solar system, allowing students to interact with planets and learn about astronomy in a hands-on way. In both fields, the system’s high resolution ensures detailed visuals—critical for medical training (where precision matters) and education (where clarity enhances learning retention).

Future Trends

1. Ultra-High Resolution and Micro-LED Technology

The next generation of large LED video walls will leverage micro-LED technology—tiny, self-illuminating LEDs (measuring less than 100 micrometers) that deliver higher brightness, contrast, and energy efficiency than traditional LEDs. Micro-LED panels will enable ultra-fine pixel pitches (down to 0.5mm), creating walls with 8K+ resolution even in small spaces. For example, a 2x1m micro-LED wall with 0.5mm pixel pitch will have a resolution of 4,096x2,048—sharp enough for medical professionals to view detailed surgical scans or for designers to review high-resolution product prototypes. This technology will also reduce power consumption by 30–50% compared to current LED systems, addressing one of the key challenges of large displays.

2. AI-Driven Smart Management

Artificial intelligence (AI) will play an increasingly central role in optimizing large LED video wall performance. AI-powered control software will automate tasks like content calibration (adjusting brightness/color based on ambient lighting), predictive maintenance (identifying potential component failures before they occur), and content personalization (tailoring visuals to audience demographics). For example, in a retail mall, AI could analyze foot traffic data and adjust the video wall’s ads to target shoppers—showing family-friendly promotions during weekends and luxury brands during weekday evenings. AI will also enable real-time content optimization: if the system detects a lag in video playback, it will automatically adjust the data stream to restore smooth performance, reducing the need for manual intervention.

3. Integration with Immersive Technologies

Large LED video walls will increasingly integrate with virtual reality (VR), augmented reality (AR), and mixed reality (MR) to create fully immersive experiences. In entertainment, a theme park might use a curved LED wall paired with VR headsets to transport visitors to a virtual world—with the wall displaying a 360° environment that syncs with the headset’s visuals. In healthcare, surgeons could use an AR-enabled LED wall to overlay patient data (e.g., X-rays, vital signs) onto their field of view during surgery, enhancing precision. For corporate training, companies might use MR-powered walls to simulate real-world scenarios (e.g., customer service interactions, equipment maintenance) that employees can interact with, making training more engaging and effective.

4. Sustainability and Circular Design

As environmental concerns grow, manufacturers will prioritize sustainability in large LED video wall design. Future systems will use recyclable materials for panels and frameworks (e.g., aluminum alloy that can be melted down and reused) and incorporate energy-efficient components (like low-power micro-LEDs and smart power management systems). Rental and leasing models will also become more common, allowing organizations to use the technology without purchasing it outright—reducing electronic waste. Additionally, manufacturers will design walls for easy disassembly, making it simpler to replace faulty components (instead of the entire wall) and recycle parts at the end of the system’s lifespan. Some companies may even offer “carbon-neutral” walls, offsetting the energy used during production and operation through renewable energy projects.

Conclusion

The large LED display visual video wall system has solidified its position as a transformative technology in visual communication, spanning industries from control centers and entertainment to retail, healthcare, and education. Its unique combination of superior visual performance, scalability, durability, and versatile content support has made it an indispensable tool for organizations seeking to engage audiences, streamline operations, and deliver impactful experiences—whether monitoring critical real-time data in an emergency response center or creating immersive backdrops for a concert tour.

While the system faces challenges—high initial costs, installation complexity, power consumption, and viewing angle limitations—these barriers are being actively addressed by technological advancements. Micro-LEDs will drive ultra-high resolution and energy efficiency, AI will automate management and personalize content, integration with VR/AR will unlock immersive use cases, and sustainability-focused design will reduce environmental impact. These innovations not only resolve current limitations but also expand the system’s potential, making it more accessible and valuable for organizations of all sizes.

Looking ahead, the large LED display visual video wall system will continue to evolve in tandem with digital transformation. As industries increasingly prioritize data-driven decision-making, immersive experiences, and sustainability, the system will adapt to meet these needs—becoming smarter, more efficient, and more integrated with emerging technologies. For example, in smart cities, these walls could serve as central communication hubs, displaying real-time traffic updates, weather alerts, and public safety messages to residents. In healthcare, they may enable remote surgical training, connecting medical students in different countries to observe procedures in high resolution.

Ultimately, the large LED display visual video wall system is more than just a display solution—it is a catalyst for innovation in how organizations communicate, learn, and operate. Its ability to transform abstract data into clear visuals, static spaces into dynamic environments, and passive audiences into active participants will ensure it remains a cornerstone of visual technology for decades to come. For organizations willing to invest in this technology, the rewards are significant: enhanced audience engagement, improved operational efficiency, and a competitive edge in an increasingly visual world.
