LED (Light Emitting Diode) indoor display signs have emerged as a revolutionary technology in the field of visual communication, transforming the way information is presented in indoor environments. These displays utilize semiconductor light-emitting devices to produce vibrant and high - contrast visuals, making them an ideal choice for a wide range of applications.

The history of LED technology dates back to the mid - 20th century, but it was not until recent decades that the development of high - brightness LEDs and advanced control systems made LED indoor display signs a practical and popular option. Initially, LED displays were primarily used for simple text - based signage, such as in banks and airports. However, with continuous technological advancements, modern LED indoor display signs can now display high - definition images, videos, and complex graphical content.

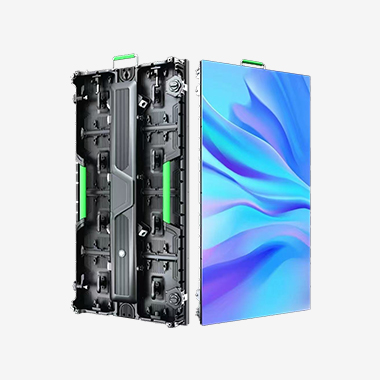

One of the key features of LED indoor display signs is their modular design. They are composed of multiple small LED modules, which can be easily assembled and disassembled. This modularity allows for great flexibility in terms of display size and shape. Whether it is a small digital menu board in a café or a large video wall in a convention center, LED indoor display signs can be customized to meet specific requirements.

In terms of visual quality, LED indoor display signs offer excellent performance. They have a high refresh rate, which ensures smooth and flicker - free images, even when displaying fast - moving content. The color accuracy of LED displays has also significantly improved over the years, with the ability to reproduce a wide range of colors, making the visuals more vivid and realistic. Additionally, LED displays have a high contrast ratio, allowing for clear visibility of content even in well - lit indoor environments.

LED indoor display signs also have a relatively long lifespan compared to traditional display technologies. With proper maintenance, an LED display can last for 50,000 hours or more, reducing the need for frequent replacements. This longevity, combined with their energy - efficient nature, makes LED indoor display signs a cost - effective solution in the long run.

The design and construction of LED indoor display signs involve several crucial aspects, from the selection of components to the overall structural assembly.

Component Selection

The heart of an LED indoor display sign is the LED itself. There are different types of LEDs available, such as surface - mount device (SMD) LEDs and through - hole LEDs. SMD LEDs are more commonly used in modern indoor displays due to their smaller size, better heat dissipation, and higher brightness uniformity. When selecting LEDs, factors such as brightness, color temperature, and viewing angle need to be carefully considered based on the specific application requirements.

In addition to LEDs, the display also requires a driver circuit. The driver circuit is responsible for providing the appropriate electrical current to the LEDs, ensuring their proper operation and controlling their brightness and color. High - quality driver circuits are essential for achieving stable and accurate display performance.

The control system is another vital component. It can be a simple microcontroller - based system for basic text - only displays or a more complex computer - based system for high - definition video displays. The control system is responsible for receiving the input signal (such as from a computer, DVD player, or camera), processing it, and sending the appropriate control signals to the LED modules.

Structural Assembly

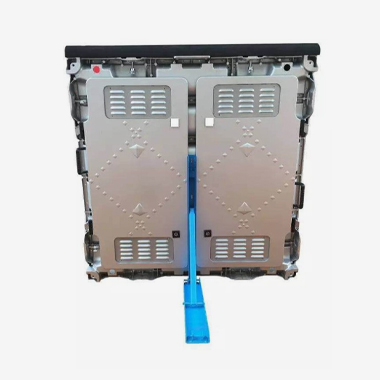

The structural design of an LED indoor display sign needs to ensure stability, durability, and ease of installation and maintenance. The frame of the display is usually made of metal materials, such as aluminum or steel, which provide strength and rigidity. The LED modules are mounted on the frame, and the connections between the modules are carefully made to ensure a seamless visual appearance.

For larger displays, additional support structures may be required to prevent sagging or distortion. In some cases, a rear - access design is adopted, which allows technicians to easily access the internal components n is adopted, which allows technicians to easily access the internal components for maintenance and repairs without having to remove the entire display from the wall or ceiling.

The front surface of the display may be covered with a protective layer, such as a transparent acrylic or tempered glass, to protect the LEDs from dust, moisture, and physical damage. This protective layer also helps to enhance the visual quality by reducing reflections and improving the viewing angle.

Customization

Customization is a significant advantage in the design of LED indoor display signs. Depending on the customer's needs, the size, shape, and aspect ratio of the display can be customized. For example, circular or irregular - shaped displays can be created for unique visual effects in art installations or special event venues. Moreover, the display can be designed to integrate with other systems, such as audio systems or sensor networks, to create a more immersive and interactive experience.

The working principles of LED indoor display signs are based on the unique properties of LEDs and the coordinated operation of various components.

LED Operation

An LED is a semiconductor device that emits light when an electric current passes through it. The process is called electroluminescence. Inside an LED, there is a p - n junction. When a forward - bias voltage is applied across the p - n junction, electrons from the n - type semiconductor and holes from the p - type semiconductor recombine. During this recombination process, energy is released in the form of photons, which results in the emission of light.

The color of the light emitted by an LED depends on the energy bandgap of the semiconductor material used. Different semiconductor materials, such as gallium arsenide (GaAs), gallium phosphide (GaP), and indium gallium nitride (InGaN), are used to produce LEDs of different colors, including red, green, blue, and white.

Pixel Formation

In an LED indoor display sign, multiple LEDs are grouped together to form pixels. A pixel is the smallest unit of the display that can be independently controlled to produce a specific color and brightness. For full - color displays, each pixel typically consists of three LEDs: one red, one green, and one blue (RGB). By varying the intensity of these three primary - color LEDs, a wide range of colors can be created through the principle of additive color mixing.

For example, when the red, green, and blue LEDs in a pixel are all at maximum intensity, white light is produced. By adjusting the intensity of each LED, different shades and hues can be achieved. Modern LED displays can control the intensity of each LED with a high degree of precision, allowing for the reproduction of millions of colors.

Signal Processing and Control

The input signal, which can be in the form of video, image, or text data, is first received by the control system. The control system decodes and processes this signal, separating it into the appropriate control signals for each pixel. These control signals are then sent to the driver circuits associated with each LED module.

The driver circuits adjust the electrical current supplied to the LEDs based on the control signals, thereby controlling the brightness and color of each LED. The process is synchronized at a very high speed, typically in the form of a refresh rate. A high refresh rate ensures that the display appears smooth and stable to the human eye, even when displaying dynamic content.

In addition, some advanced LED indoor display signs may also incorporate features such as automatic brightness adjustment. This is achieved through the use of ambient light sensors, which detect the surrounding light level and send signals to the control system. The control system then adjusts the brightness of the display accordingly, ensuring optimal visibility while also saving energy.

Advantages

One of the most significant advantages of LED indoor display signs is their high - quality visual performance. As mentioned earlier, they offer excellent color accuracy, high contrast ratios, and a wide viewing angle. This means that the content displayed on an LED indoor display can be clearly seen and appreciated from various positions within the indoor space, making it suitable for large - scale audience communication.

LED indoor display signs are also highly energy - efficient. Compared to traditional display technologies like cathode - ray tubes (CRTs) and even some types of liquid - crystal displays (LCDs), LEDs consume less power. This not only reduces the electricity bill but also has a lower environmental impact. Additionally, the long lifespan of LED displays further contributes to their cost - effectiveness, as there is less need for frequent replacements and associated maintenance costs.

The flexibility in design and customization is another major advantage. LED indoor display signs can be made in various sizes, shapes, and resolutions to fit different indoor spaces and application requirements. They can be easily integrated with other systems, such as digital signage software, to create dynamic and interactive displays. For example, in a shopping mall, an LED display can be used to display real - time product information, promotions, and wayfinding maps, enhancing the overall shopping experience for customers.

LED displays are also known for their durability. They are resistant to shock, vibration, and electromagnetic interference, which makes them suitable for use in a variety of indoor environments, including industrial settings and transportation hubs.

Challenges

Despite their many advantages, LED indoor display signs also face several challenges. One of the main challenges is the initial cost. The purchase and installation of LED indoor display signs can be relatively expensive, especially for large - scale, high - resolution displays. This high upfront cost may be a barrier for some small - and medium - sized businesses or organizations with limited budgets.

Another challenge is the maintenance requirements. Although LED displays have a long lifespan, they still require regular maintenance to ensure optimal performance. This includes checking for faulty LEDs, cleaning the display surface, and ensuring proper ventilation for heat dissipation. In some cases, if the display is installed in a hard - to - reach location, maintenance can be time - consuming and costly.

Color uniformity can also be an issue in LED indoor display signs. Over time, the color and brightness of individual LEDs may vary slightly, resulting in visible color differences or brightness variations across the display. Manufacturers are constantly working on improving manufacturing processes and calibration techniques to address this problem, but it remains a challenge, especially for large - format displays.

In addition, the complexity of the control systems and software associated with LED indoor display signs can be a hurdle for some users. Operating and managing advanced LED displays require a certain level of technical knowledge, and any software glitches or system malfunctions can disrupt the normal operation of the display.

Applications

LED indoor display signs have a wide range of applications across various industries. In the commercial sector, they are commonly used in shopping malls, hotels, and restaurants for advertising, product promotion, and information dissemination. For example, a large LED video wall in a shopping mall can attract customers' attention with eye - catching product videos and promotional offers. In hotels, LED displays can be used to display check - in/check - out information, event schedules, and hotel amenities.

In the corporate world, LED indoor display signs are used in office lobbies, conference rooms, and training centers. In office lobbies, they can display company news, welcome messages, and visitor information. In conference rooms, LED displays provide a high - quality visual platform for presentations, video conferences, and data visualization.

The entertainment industry also benefits greatly from LED indoor display signs. In theaters, concert halls, and event venues, large LED screens are used to display stage backgrounds, live video feeds, and special effects, enhancing the overall entertainment experience for the audience.

In the educational field, LED indoor display signs can be used in classrooms, libraries, and school lobbies. They can display educational content, announcements, and student achievements, creating an interactive and engaging learning environment.

Future Trends

The future of LED indoor display signs looks promising, with several exciting trends on the horizon. One of the major trends is the development of higher - resolution displays. As the demand for more detailed and immersive visual experiences increases, manufacturers are working on creating LED displays with ultra - high resolutions, such as 8K and beyond. This will enable more realistic and detailed image and video reproduction, making LED indoor display signs even more suitable for applications like virtual reality (VR) and augmented reality (AR) in indoor environments.

Another trend is the integration of smart technologies. LED indoor display signs will increasingly be connected to the Internet of Things (IoT), allowing for remote monitoring, control, and data collection. For example, display owners will be able to update content, adjust display settings, and diagnose problems from anywhere using a smartphone or computer. Additionally, the integration of artificial intelligence (AI) technologies will enable more intelligent content generation and display optimization, such as automatically adjusting the display based on the time of day, audience demographics, or current events.

The development of flexible and transparent LED displays is also an emerging trend. Flexible LED displays can be bent, curved, or wrapped around different surfaces, opening up new possibilities for creative and unique display designs. Transparent LED displays, on the other hand, can be used in storefronts, museums, and architectural installations, providing a seamless blend of digital and physical elements.

Energy - efficiency will continue to be a focus in the future. With the growing emphasis on sustainability, manufacturers will strive to develop more energy - efficient LED technologies and power management systems, further reducing the environmental impact of LED indoor display signs.

Conclusion

LED indoor display signs have come a long way since their inception, evolving into a highly versatile and powerful visual communication tool. Their excellent visual performance, energy - efficiency, flexibility in design, and durability have made them the preferred choice for a wide range of indoor applications across various industries.

However, they also face challenges such as high initial costs, maintenance requirements, color uniformity issues, and technical complexity. Despite these challenges, the continuous advancements in technology, such as the development of higher - resolution displays, integration of smart technologies, and creation of flexible and transparent displays, are driving the future growth of the LED indoor display sign market.

As technology continues to progress, LED indoor display signs are expected to play an even more significant role in our daily lives, providing more immersive, interactive, and intelligent visual experiences. Whether it is for advertising, information dissemination, or entertainment, LED indoor display signs will continue to shape the way we communicate and interact with digital content in indoor environments.
