An immersive LED visual display is not merely a screen; it is a architectural and technological environment designed to completely surround the viewer's field of vision, effectively transporting them into a digital realm. This represents the pinnacle of experiential technology, moving far beyond traditional viewing to create a state of presence and total engagement. The core objective of immersion is to dissolve the boundaries between the physical space and the digital content, tricking the brain into accepting the simulated environment as reality, or at least as a dominant and captivating experience.

The concept of immersion is multidisciplinary, relying on a synergy of high-fidelity hardware, sophisticated software, and meticulously crafted content. While projection mapping has been used for immersive rooms (like early CAVEs), LED technology has become the dominant medium due to its superior brightness, contrast, color volume, and ability to create seamless, bezel-free canvases of virtually any shape or size. An immersive LED environment is typically characterized by its scale, its curvature or multi-faceted design, and its high resolution, all working in concert to fill the human peripheral vision, which is crucial for triggering a deep sensory response.

These systems are engineered to achieve a state of "suspension of disbelief." This is accomplished through several key technical and artistic factors: High Resolution and Fine Pixel Pitch: To prevent the brain from detecting individual pixels (a clear sign of a simulated world), the display must have an extremely fine pixel pitch (often P2.5 or smaller), creating a smooth, realistic image even at very close viewing distances. High Dynamic Range (HDR) and Color Fidelity: The display must replicate the vast range of brightness levels (from deepest blacks to brilliant highlights) and the wide color gamut found in the real world. This contrast and color accuracy are vital for depth perception and emotional impact. Seamless Geometry and Wide Field of View (FOV): The display must wrap around the viewer, typically covering 180 degrees or more, with no visible seams or distortions that could break the illusion. This often involves complex curved or corner-wrapping installations.

The applications for this technology are vast and growing rapidly. They are the foundation of next-generation simulation and training for pilots, surgeons, and military personnel. They are creating unprecedented attractions in museums, theme parks, and flagship retail stores. In the corporate world, they are transforming boardrooms and design studios into collaborative virtual workspaces. Most famously, they are the engine of the "virtual production" revolution in filmmaking, popularized by productions like The Mandalorian, where actors perform within a dynamic, real-time digital world. An immersive LED display is, therefore, the ultimate synthesis of art and engineering—a portal to other worlds limited only by the imagination of the content creator.

The design and construction of an immersive LED display is a monumental task that blends structural engineering, optical science, thermal management, and software integration. It is a custom-built ecosystem where every detail is optimized for perceptual seamlessness and environmental integration.

1. Architectural Integration and Form Factor:

The design process begins with the architectural space and the desired immersive effect. Unlike flat walls, immersive displays are fundamentally architectural. Common configurations include:

    Curved/Wrap-Around Walls: The most common form, encompassing a 90- to 270-degree field of view. The radius of curvature is critically calculated based on the intended "sweet spot" viewing area to maintain consistent viewing angles and minimize distortion.

    Cylindrical and Domed Environments: These fully surround groups of viewers, often used in planetariums, advanced simulators, and experiential attractions. The engineering complexity is high, requiring specially designed trapezoidal or triangular panels to conform to the complex geometry without gaps.

    Floors and Ceilings: True immersion often requires extending the visual environment to the floor (a "LED volume") and sometimes the ceiling. Floor panels are engineered with incredibly robust, weight-bearing, and often anti-slip surfaces to allow people to walk on them.

    Infinity Rooms: A specialized application where walls and floor are seamlessly connected, creating the illusion of an endless space.

2. The LED Module and Cabinet: Precision Engineering:

The heart of the system is the LED module. For immersion, Chip-on-Board (COB) technology is increasingly becoming the standard over traditional SMD. COB offers superior durability (no vulnerable wiring leads), a smoother surface without pixel-level "dots," better heat dissipation, wider viewing angles (often exceeding 170 degrees), and higher contrast due to reduced light reflection between pixels. This makes it ideal for close-proximity viewing where any visual artifact can break immersion.

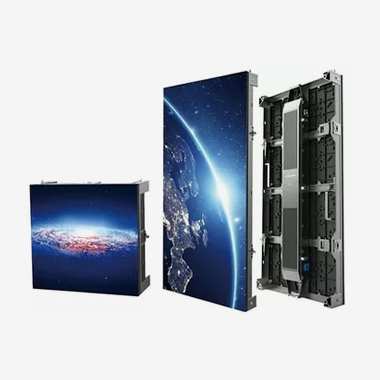

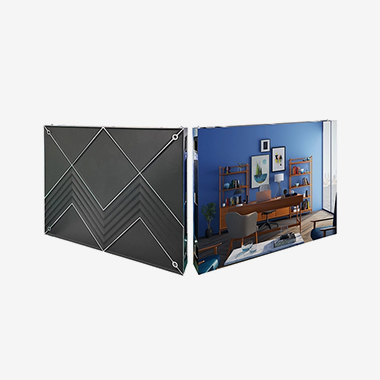

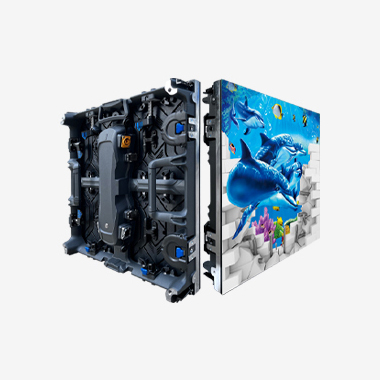

These modules are assembled into cabinets designed for precision alignment. Given the curved nature of most installations, cabinets often have specialized locking mechanisms that allow for micro-adjustments in multiple axes to ensure a perfectly smooth, continuous surface without any "stepping" or misalignment between panels. The cabinet structure itself must be rigid yet allow for precise curvature.

3. Calibration and Color Uniformity:

This is perhaps the most critical step in construction. Even with top-tier components, minute variations in LED color and brightness exist. For a flat screen, this might be tolerable, but in an immersive environment, any patchiness or color shift across the field of view is instantly noticeable and ruinous. Therefore, after physical installation, every single panel undergoes a meticulous calibration process using specialized spectroradiometers and colorimeters. Advanced software measures the output of thousands of sample points across the entire display surface and creates a unique compensation profile. This profile digitally adjusts the output of each individual LED to ensure perfect color consistency and brightness uniformity across the entire vast canvas. This process can take days for a large volume but is non-negotiable for high-end immersion.

4. Supporting Infrastructure:

The construction also involves immense supporting infrastructure:

    Structural Rigging: The entire display must be securely mounted, often on a custom-built steel subframe that must support tons of weight while allowing access for maintenance from behind.

    Thermal Management: The dense concentration of LEDs generates significant heat. Sophisticated and silent cooling systems—using advanced heat sinks, quiet fans, and sometimes liquid cooling—are integrated to maintain optimal operating temperatures and ensure long lifespan.

    Cable Management: Thousands of data and power cables must be routed neatly and efficiently, with careful attention to signal integrity over long runs, often using fiber optics to prevent data degradation.

The working principle of an immersive LED display is a complex orchestration of data processing, real-time rendering, and precision control, all happening at immense scale and speed to sustain the illusion of reality.

1. Content Creation and the Real-Time Engine:

The content for immersive displays is fundamentally different from a linear video file. It is typically created within a 3D real-time rendering engine, such as Unreal Engine or Unity. These game engines are used because they can generate photorealistic imagery dynamically, from any perspective, in real-time. This is essential for immersion in two key scenarios:

    Interactive Experiences: When a user moves, the perspective of the entire 3D world must change accordingly and instantaneously to maintain the illusion.

    Virtual Production: In filmmaking, as the camera moves, the background on the LED wall must shift with perfect parallax to simulate a real environment, allowing for in-camera visual effects.

The 3D environment is built by artists and developers, complete with textures, lighting, and physics. This digital world is then "camera-mapped" onto the physical geometry of the LED volume.

2. The Render Cluster and Synchronization:

Rendering a high-resolution, high-framerate (often 60fps or higher) image for a massive, multi-faceted LED volume is beyond the capability of a single computer. The task is distributed across a render cluster—a network of high-performance GPUs (graphics processing units) working in parallel. Each GPU (or group of GPUs) is responsible for rendering a specific section of the overall display (e.g., the left wall, the center wall, the floor). A master machine, or a dedicated sync generator, ensures that every frame from every rendering node is perfectly synchronized down to the microsecond. Any lag or tearing between sections would instantly shatter the immersive effect.

3. Advanced Processing and Warping:

The output from the render nodes is fed into a powerful video processing system. This system performs several critical functions:

    Mapping and Warping: The flat image rendered for each section must be digitally warped to perfectly fit the physical curvature and angles of the actual LED panels. This corrects for geometric distortion.

    Blending and Color Matching: The processor applies the sophisticated uniformity calibration profiles to ensure color and brightness consistency across all the different panels and cabinets, seamlessly blending the output from the multiple render nodes into a single, cohesive image.

    Dealing with Non-Standard Resolutions: The total resolution of an immersive wall is a non-standard, massive pixel count (e.g., 10,000 x 4,000 pixels). The processor manages this "virtual desktop," ensuring the content is displayed correctly across this vast canvas.

4. Pixel-Level Control and Refresh Rates:

Finally, the processed data is sent to the LED cabinets. Inside each cabinet, receiving cards distribute commands to the driver ICs for each module. These drivers use Pulse-Width Modulation (PWM) to control the intensity of each red, green, and blue sub-pixel. The refresh rate must be exceptionally high (≥3840Hz) for two reasons: first, to eliminate any perceptible flicker to the human eye, especially in peripheral vision which is more sensitive to it; and second, to ensure compatibility with professional broadcast cameras. A low refresh rate would cause unsightly rolling shutter artifacts and black bands when filmed. This entire pipeline, from user input or camera movement to the updated light output from millions of LEDs, must occur with imperceptible latency to preserve the fragile state of immersion.

Advantages:

    Unprecedented Realism and Presence: The primary advantage is the ability to create a convincing sense of "being there." The high brightness, contrast, and wide field of view trigger deep psychological and emotional responses, leading to more effective training, more captivating storytelling, and more memorable experiences.

    Superior Visual Fidelity over Projection: LEDs outperform projection in nearly every metric: they are brighter, offer true blacks (as pixels can be turned off), are not washed out by ambient light, and have no issues with projector alignment or shadows cast by people within the space.

    Revolutionizes Virtual Production: In filmmaking, it allows directors and actors to see and interact with the final digital environment in real-time during filming, fostering better performances, simplifying lighting (the LEDs illuminate the set naturally), and delivering final pixel imagery in-camera, drastically reducing post-production time and cost.

    Durability and Long-Term Stability: Once calibrated, an LED display maintains its image consistency for years. Unlike projectors, there are no lamps to degrade and replace, and the solid-state nature of LEDs offers high reliability.

    Interactivity and Dynamic Flexibility: The integration with real-time engines means the environment can respond to user input, creating truly interactive experiences for education, simulation, and entertainment that are impossible with pre-rendered video.

Challenges:

    Prohibitively High Cost: The initial investment is enormous. This includes the cost of the high-density LED panels, the complex structural support, the powerful render cluster and processing hardware, the specialized software licenses, and the significant cost of professional installation and calibration.

    Extreme Technical Complexity: Designing, integrating, and operating such a system requires a diverse team of experts: structural engineers, LED technicians, network specialists, real-time graphics programmers, and 3D artists. The margin for error is极小 (extremely small).

    The Content Bottleneck: Creating high-fidelity, photorealistic 3D content for these vast canvases is incredibly time-consuming and expensive. The content must be optimized to run in real-time without dropping frames, which requires significant artistic and technical skill.

    Thermal and Power Management: A large volume can draw enough power to require a dedicated electrical substation. Managing the heat output from the wall and the render cluster requires robust HVAC solutions, which add to the cost and complexity.

    Calibration Maintenance: While stable, the calibration may need to be checked and tweaked periodically, especially if individual modules are replaced, requiring access to specialized equipment and expertise.

    Viewing Distance Limitations: The immersion effect has a defined "sweet spot." If viewers move too close to a wall with a given pixel pitch, the image will become pixelated, breaking the illusion. Designing the volume for its intended audience size and movement is critical.

Applications:

    Virtual Production for Film & TV: The application popularized by Disney's The Mandalorian. LED volumes serve as dynamic, real-time backdrops, enabling in-camera VFX and revolutionizing on-set creativity.

    Advanced Simulation and Training: Used for flight simulators (civilian and military), surgical training platforms, driving simulators for automotive testing, and crisis response training for first responders, providing a safe, controllable, and highly realistic environment.

    Experiential Attractions and Museums: Creating breathtaking walk-through environments in theme parks (e.g., Star Wars: Galaxy's Edge), immersive art exhibitions (e.g., teamLab), and historical recreations in museums that transport visitors to another time or place.

    Corporate Visualization and Collaboration: In automotive, aerospace, and architecture firms, immersive displays allow teams to visualize and interact with full-scale 3D models of cars, aircraft, or buildings long before a physical prototype is built.

    High-End Broadcast and Esports: Used as dynamic studio backdrops for news and weather channels, and creating spectacular sets for major esports tournaments.

    Scientific Research and Data Visualization: Allowing scientists to step inside complex data sets, such as molecular models, astrophysical simulations, or geological formations, to gain new insights.

Future Trends:

    MicroLED and MiniLED Convergence: The continued miniaturization of LED chips will lead to microLED displays becoming the standard. This will enable even finer pixel pitches (sub-P1.0), higher brightness, and improved efficiency, making immersion accessible for smaller spaces and closer viewing.

    AI-Powered Content Generation: Artificial intelligence will play a huge role in overcoming the content bottleneck. AI tools will be able to generate photorealistic environments, textures, and characters in real-time based on simple text or voice prompts, drastically reducing the time and cost of content creation.

    Haptic and Multi-Sensory Integration: True immersion will extend beyond sight and sound. Future systems will integrate haptic floors, wind machines, scent diffusers, and temperature control to engage all senses, deepening the immersive experience.

    Volumetric Capture and Display: Moving beyond 2D surfaces, research into true 3D displays (holograms, light field displays) will allow for glasses-free viewing of volumetric content, creating shared immersive experiences without the need for a fixed "sweet spot."

    The Metaverse Gateway: Immersive LED volumes will become the physical portals for accessing and interacting with persistent virtual worlds (the Metaverse), providing a high-fidelity, social, and embodied experience far beyond what a VR headset can offer.

    Neural Calibration and Biometrics: Systems will use camera-based eye-tracking and biometric feedback to dynamically adjust content and calibration in real-time based on where viewers are looking and how they are reacting, creating a personalized and adaptive immersive experience.

Conclusion

The immersive LED visual display signifies a paradigm shift in our relationship with digital information and storytelling. It is a technology that does not seek to be looked at, but to be lived in. By leveraging the raw power of modern LED technology, real-time graphics rendering, and meticulous systems engineering, it creates environments capable of convincing the human brain that it is somewhere else entirely. This capability has profound implications across a vast spectrum of industries, from creating the next generation of cinema to training the surgeons and pilots of tomorrow.

While the path to widespread adoption is currently paved with significant challenges—primarily astronomical costs and extreme technical complexity—the relentless march of technological progress is steadily lowering these barriers. The trends towards microLED, AI-generated content, and multi-sensory integration promise a future where immersive experiences become more affordable, easier to create, and even more convincing.

The ultimate significance of the immersive LED display lies in its function as a bridge. It is a bridge between the physical and the digital, between the artist's imagination and the audience's perception, and between data and understanding. It represents a new form of media that is spatial, experiential, and deeply human. As this technology continues to evolve, it will undoubtedly redefine not only entertainment and design but also how we work, learn, and connect with each other, solidifying its place as one of the most transformative visual technologies of the 21st century.
