The urban landscape of the 21st century is a dynamic tapestry of light and information, a far cry from the static printed billboards and neon signs of the past. At the heart of this visual transformation is the full-color advertising LED display sign. More than just a simple upgrade, this technology represents a fundamental paradigm shift in how businesses, organizations, and cities communicate with the public. It is a vibrant, dynamic, and powerful medium that has redefined the realms of marketing, public information, and architectural aesthetics.

A full-color LED display is, in essence, a giant, programmable television screen constructed from modular panels, each containing a dense array of light-emitting diodes (LEDs). Unlike traditional signage, which is fixed and permanent once produced, an LED display is a dynamic canvas. Its content can be changed instantly, remotely, and as often as desired, from anywhere in the world. This capability to deliver motion video, animation, real-time information, and interactive content makes it arguably the most attention-grabbing and versatile advertising tool ever invented.

The journey of this technology began with humble origins. The first LEDs, developed in the early 1960s, were only capable of emitting low-intensity red light. They were used as indicator lights in laboratory equipment and later in consumer electronics. The invention of blue and high-brightness green LEDs in the 1990s was the critical breakthrough, finally enabling the creation of RGB (Red, Green, Blue) pixel clusters that could generate the full spectrum of visible light through additive color mixing. Concurrent advances in computing power, data transmission, and manufacturing processes allowed these tiny points of light to be assembled into the massive, high-resolution displays we see today.

The core value proposition of a full-color LED sign is its unparalleled ability to command attention. In a world saturated with visual stimuli, a static image can easily blend into the background. A large-format, brightly lit screen showing high-definition video content is almost impossible to ignore. This dynamic nature allows for a single screen to host multiple advertisers, cycling through messages throughout the day, thereby maximizing revenue potential for the sign owner. Furthermore, it enables "dayparting," where ads for coffee can run in the morning, lunch specials at noon, and entertainment options in the evening, making the messaging contextually relevant.

The applications are vast and continually expanding. The most iconic examples are the colossal digital towers in global hubs like Times Square, Piccadilly Circus, and Shibuya Crossing, where they serve as powerful symbols of commercial and cultural vitality. Beyond these landmarks, they are ubiquitous along highways as digital billboards, on the facades of shopping malls and car dealerships, and in sports stadiums as giant jumbotrons that enhance the live experience with instant replays and statistics. They have also become critical infrastructure in airports and train stations for displaying real-time schedules and alerts, and in corporate lobbies for branding and communications.

The technology's evolution is a story of relentless innovation. Early full-color displays were low-resolution, energy-inefficient, and prone to failures. Today, we have fine-pitch and even ultra-fine-pitch (UFP) LEDs that allow for stunningly detailed images viewable at close distances. Curved and flexible LED technology enables screens to wrap around buildings or form cylindrical columns, breaking free from the rigid constraints of the flat panel. The integration of sensors, cameras, and networking has given rise to interactive and smart displays that can respond to environmental data or audience movement.

In summary, the full-color advertising LED display is far more than a billboard. It is a complex convergence of hardware engineering, software control, and creative content design. It has shifted advertising from a passive, one-way broadcast to an active, engaging, and potentially two-way conversation. As the technology continues to advance, becoming more efficient, affordable, and seamlessly integrated into our environment, its role as the dominant medium for large-scale visual communication is only set to grow, continuing to illuminate and shape the modern marketplace.

The mesmerizing spectacle of a massive, seamless video wall broadcasting high-definition content is a feat of modern engineering. The design and construction of a full-color advertising LED display is a meticulous, multi-disciplinary process that blends electronics, industrial design, structural engineering, and software. It involves the precise assembly of millions of individual components into a robust, reliable, and visually coherent system designed to operate 24/7, often in demanding environmental conditions.

The journey begins at the most microscopic level: the LED chip. For full-color displays, three types of semiconductor chips are used: red, green, and blue. The quality and consistency of these chips are paramount. High-end displays use chips from premier manufacturers that are meticulously "binned" – sorted based on precise performance characteristics like luminance and wavelength (chromaticity). This ensures that every red LED across the entire display is the exact same shade of red, guaranteeing color uniformity—a critical factor for image quality.

These tiny chips are packaged into what is known as a Surface-Mount Device (SMD). This is the prevailing technology in the industry today. In an SMD package, the red, green, and blue diode chips are mounted together onto a single substrate, which is then soldered directly onto the surface of a printed circuit board (PCB). This design allows for a much tighter pixel pitch, better color mixing from a single point, and wider viewing angles compared to the older Through-Hole Technology (THT).

These SMD LEDs are arranged in a precise grid on the PCB to form the most critical unit: the LED module. The density of this grid is defined by its pixel pitch—the distance, in millimeters, from the center of one pixel to the center of the adjacent pixel. This is the single most important specification determining the display's resolution and optimal viewing distance. A large outdoor billboard viewed from 300 feet away may have a P20 pitch, while an indoor corporate lobby screen might require a P2.5 fine-pitch display for close-up viewing.

The module's PCB is a masterpiece of miniaturized electronics, containing the intricate copper traces that deliver power and data to each LED. It also hosts the crucial driver integrated circuits (ICs). These chips act as the translators, receiving commands from the display's control system and executing them by regulating the precise electrical current sent to each individual LED.

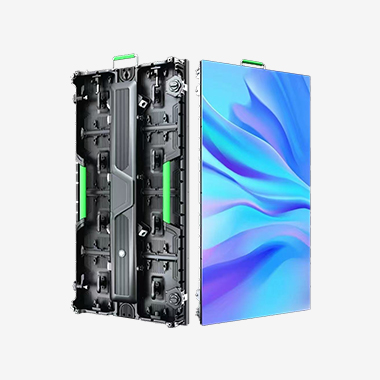

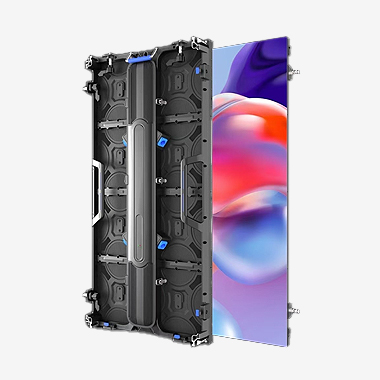

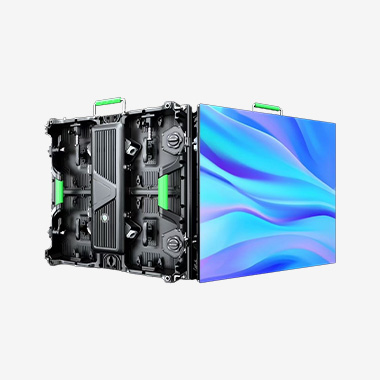

Multiple modules are then mounted onto a rigid metal structure, typically made of die-cast aluminum or lightweight alloy, to form a larger cabinet or panel. These cabinets are the fundamental building blocks shipped to and assembled on-site. Their design is critical for the display's longevity and performance, incorporating several key features:

Structural Rigidity: They must be strong enough to support their own weight in a multi-story array and resist significant wind loads and vibrations.

Thermal Management: LEDs generate heat, which, if not managed, reduces their lifespan and causes color drift. Cabinets are designed with extensive aluminum heat sinks and often incorporate silent fans (active cooling) or are engineered for natural convection (passive cooling).

Environmental Protection: For outdoor signs, cabinets must have a high Ingress Protection (IP) rating, such as IP65. This means they are completely dust-tight (6) and protected against water jets from any direction (5), making them resilient against rain, snow, dust, and humidity.

Front Serviceability: A vital feature for large installations, it allows technicians to safely remove and replace a faulty module from the front of the display without needing access to the rear, which is often inaccessible on a building facade.

The final on-site construction is a feat of structural and civil engineering. The supporting framework, or truss, must be engineered to handle dead loads (the screen's weight), live loads (wind, snow, seismic activity), and environmental factors. This often involves deep concrete foundations and a custom steel framework designed to specific wind zone requirements.

The entire physical array is then integrated with a sophisticated control system, which includes:

Video Processors: The brain of the operation. They take the input video signal, scale it to the native resolution of the LED wall, perform color calibration and image enhancement, and distribute the processed data.

Sending and Receiving Cards: The processed signal is sent from a master "sending card" to multiple "receiving cards" mounted inside each cabinet. These cards manage the data for their specific section of the display.

Power Supplies: Highly efficient, switch-mode power supplies convert AC mains power to the low-voltage DC required by the LEDs, often with redundant and hot-swappable units to ensure maximum uptime.

In conclusion, the design and construction of an LED display is a harmonious blend of micro-scale precision and macro-scale strength. It is a process that transforms raw materials—semiconductors, copper, aluminum—into a dynamic, resilient, and brilliant visual medium, capable of captivating audiences on a grand scale.

The ability of a full-color LED display to render a flawless, full-motion video image is a masterpiece of digital coordination. Its operation is a complex, hierarchical, and lightning-fast symphony of data transmission, power regulation, and optical physics, all working in concert to translate a digital video file into the vibrant visual experience we see. The core principle hinges on additive color mixing and precise pulse-width modulation, executed millions of times per second across millions of individual points of light.

The process begins with the content source. This is typically a video file played on a dedicated media player, a live feed from a computer, or a broadcast signal. This source outputs a standard video signal (e.g., HDMI, SDI, or DisplayPort) framed at a specific resolution (like 1920x1080) and refresh rate (e.g., 60Hz).

This signal is received by the central nervous system of the display: the video processor or controller. The processor's first critical task is scaling. Unlike a standard monitor with a fixed resolution, an LED wall's native resolution is determined by its total pixel count—how many modules and how many pixels per module. The processor must intelligently scale the incoming image to fit this non-standard canvas, using advanced algorithms to preserve sharpness and avoid distortion.

Next, the processor applies color calibration and gamma correction data. During manufacturing, each module is professionally calibrated. Colorimetric data measuring the output of red, green, and blue for each pixel (or group of pixels) is stored in a profile. The processor uses this data to ensure perfect color uniformity across the entire display, compensating for any minor variances between modules and LEDs. It also manages overall brightness, often using data from ambient light sensors to automatically adjust the screen's intensity for optimal visibility and energy savings throughout the day and night.

The processed image data is now packaged and distributed. The processor sends this data via high-speed serial communication cables (like CAT5e/6 or fiber optics) to sending cards. A master sending card can manage a large number of receiving cards, which are the workhorses physically installed inside each LED cabinet on the wall.

This is where real-time, pixel-level control happens. Each receiving card is responsible for a specific section of the display—a manageable block of pixels, perhaps 256x256. The card takes the data packet and routes the instructions to the correct driver integrated circuits (ICs) on the individual LED modules. The driver ICs are the final link in the control chain, the musicians taking direction from the conductor. Each driver IC controls a group of LEDs (e.g., a row of 16 pixels).

The driver ICs use a technique called Pulse-Width Modulation (PWM) to control the brightness of each LED. Instead of varying the analog voltage (which is inefficient and causes color inaccuracies), PWM works by switching the LED on and off at an extremely high frequency—thousands or even tens of thousands of times per second. The human eye perceives this rapid cycling as a steady level of brightness. The key is the duty cycle: the percentage of time the LED is "on" during each complete cycle.

A 0% duty cycle: The LED is off.

A 50% duty cycle: The LED is on half the time, perceived as 50% brightness.

A 100% duty cycle: The LED is fully on.

To create a specific color, the driver IC independently controls the duty cycle of the red, green, and blue LEDs within a single pixel. For example, to create a perceived yellow color, the driver IC would set the red and green LEDs to a high duty cycle while keeping the blue LED completely off. The precise mixture of these three primary colors at varying intensities generates the millions of colors the display can produce.

A critical performance metric is the refresh rate—how many times per second the data for the entire screen is updated. A high refresh rate (e.g., 1920Hz, 3840Hz, or higher) is essential for eliminating flicker (especially when recorded on camera), producing smooth motion for fast-paced video, and reducing eye strain for viewers.

Running in parallel is the vital power system. Highly efficient, switch-mode power supplies (SMPS) convert high-voltage alternating current (AC) from the grid to the low-voltage direct current (DC) required by the LEDs and electronics (typically 5V). These supplies are distributed throughout the display's structure to minimize voltage drop over long distances, ensuring every LED receives stable and consistent power, which is fundamental for maintaining uniform brightness and color across the entire screen.

In summary, the working principle of an LED display is a breathtakingly fast and precise process of data deconstruction and execution. From the video processor's strategic overview down to the driver IC's microsecond-level switching of individual diodes, every component works in perfect harmony to transform digital code into the vibrant, dynamic visual experiences that define our modern visual landscape.

The dominance of full-color LED technology in the advertising and signage industry is driven by a powerful set of advantages that offer tangible benefits to advertisers, sign owners, and the public. However, like any sophisticated and impactful technology, its deployment and operation are not without significant challenges and considerations. A clear-eyed view of both sides is essential for any stakeholder.

Advantages:

Superior Brightness and Visibility: The self-emissive nature of LEDs allows displays to achieve extreme brightness levels (often measured in thousands of nits). This is the single greatest advantage for outdoor advertising, as the screen remains vividly clear and legible even under direct sunlight, a condition that renders reflective print billboards and transmissive LCD screens washed out and ineffective.

Dynamic and Flexible Content: This is the most revolutionary advantage over static media. Content can be changed instantly, remotely, and as often as desired. This enables:

Dayparting: Showing breakfast ads in the morning, lunch specials at noon, and dinner/entertainment ads in the evening.

Real-Time Advertising: Promoting flash sales, live events, or weather-dependent products (e.g., umbrellas during rain).

Multiple Revenue Streams: A single screen can host a rotating schedule of ads for dozens of different clients, maximizing its revenue-generating potential.

Creative Impact: Full-motion video, animations, and interactive content are far more engaging, memorable, and emotionally resonant than a static image.

Energy Efficiency and Longevity: Modern LEDs are incredibly efficient photons-per-watt. Compared to traditional illuminated signs like neon or cold cathode, LED displays consume significantly less power for the same—or greater—light output. Furthermore, high-quality LEDs have an exceptionally long operational lifespan, often rated at 100,000 hours to L70 (the point where brightness depreciates to 70% of original). This translates to over 11 years of continuous operation before significant dimming occurs, drastically reducing long-term maintenance and replacement costs.

Durability and Reliability: Built with solid-state technology and no fragile glass or filaments, LED modules are highly resistant to shock, vibration, and wear. When properly manufactured with robust cabinets and high IP ratings for outdoor use, they can reliably operate 24/7 in extreme temperatures, high humidity, and harsh weather conditions, offering excellent uptime.

Seamless Scalability and Custom Shapes: The modular nature of LED technology means displays can be built to virtually any size or aspect ratio without visible bezels, creating a massive, continuous canvas. Furthermore, the advent of flexible LED modules allows for curved, cylindrical, and even free-form shapes, enabling innovative architectural integration that moves far beyond the traditional flat rectangle.

Challenges and Considerations:

High Initial Capital Investment: The upfront cost of a high-quality, full-color LED display system is substantial. This includes not only the screen itself but also the control system, structural steelwork, professional installation, and often significant electrical and construction work. The Return on Investment (ROI) must be carefully modeled based on advertising revenue, branding value, or operational efficiency gains.

Technical Complexity and Maintenance: An LED display is a complex network of electronics. While generally reliable, components like power supplies, receiving cards, and individual LEDs can and do fail. Maintenance requires specialized technicians who can diagnose issues and replace faulty components. A failing component can create a visible black spot or section on the display. A strategy involving spare parts and a service contract is essential for minimizing costly downtime.

The Pixel Pitch Dilemma: The choice of pixel pitch is a critical and costly decision tied directly to viewing distance. A finer pitch allows for higher resolution and closer viewing but comes at a much higher cost per square meter. Selecting a pitch that is too coarse for the intended viewing distance will result in a visibly pixelated, low-quality image where the individual LEDs are distractingly visible. This requires careful audience analysis during the planning phase.

Power Consumption and Thermal Management: While efficient per diode, a massive, bright LED wall is still a significant power consumer due to its sheer scale. The electrical service to the location must be designed to handle this load. Furthermore, all consumed power is converted into light and heat. Inadequate thermal management through heat sinks and cooling will lead to accelerated LED degradation, color shifting, and a shortened lifespan.

Light Pollution and Community Regulations: The very brightness that makes LEDs so effective can be a source of conflict. Concerns about light pollution, driver distraction (for roadside signs), and the impact on the character of a neighborhood are common. Most municipalities have strict ordinances governing the size, brightness, operating hours, and placement of digital signs. Navigating this regulatory landscape and ensuring the display has automatic brightness controls to dim during night hours is a crucial and often complex step.

The Content Imperative: The dynamic capability of an LED sign is worthless without dynamic content. This creates an ongoing operational requirement for a content strategy, creative design, and media management. Poorly designed, outdated, or static content on a high-tech display can be more brand-damaging than a simple static sign, as it signals a lack of creativity and effort.

In conclusion, while full-color LED displays offer a powerful, flexible, and engaging medium, they represent a significant commitment. Their success hinges not just on the quality of the hardware but also on careful strategic planning regarding placement, content, maintenance, and compliance. The challenges are significant but manageable, and when addressed properly, they allow stakeholders to fully harness the immense advantages of this transformative technology.

The application of full-color LED display technology has exploded beyond its advertising roots, permeating nearly every facet of commerce, entertainment, and public life. This proliferation is fueled by falling costs, continuous performance improvements, and a growing recognition of its power to engage, inform, and transform spaces. Concurrently, relentless innovation is pushing the boundaries of what these displays can be, charting a course for an even more integrated, interactive, and immersive future.

Diverse Applications:

Digital Out-of-Home (DOOH) Advertising: This remains the core application. From iconic digital towers in global cities to roadside billboards, retail storefronts, and digital posters at gas pumps, LED technology is the premium medium for outdoor advertising. Its ability to deliver targeted, timely, and video-rich campaigns makes it unparalleled for brand impact.

Sports and Live Event Venues: The modern stadium experience is synonymous with the central "jumbotron." These gigantic displays provide live footage, instant replays, player statistics, and interactive fan engagement, becoming an integral part of the event. Concert tours rely on massive, innovative LED stages and screens to create immersive visual spectacles.

Retail and Corporate Environments: In retail, LED displays are used for in-store promotions, dynamic window displays, and brand experience zones, creating an atmosphere that static signage cannot match. Corporations use them in lobbies for branding, in conference rooms for presentations (replacing projectors), and in command centers for data visualization.

Broadcast and Virtual Production: This is one of the most revolutionary new applications. Using incredibly high-resolution LED walls (popularized by The Mandalorian), filmmakers create photorealistic, dynamic digital backgrounds in real-time. This replaces green screens, allowing actors to see the final environment and enabling perfect in-camera lighting and reflections, radically changing film and television production.

Public Information and Transportation Hubs: Airports, train stations, and bus terminals use LED displays as their primary mission-critical information system for real-time schedules, gate changes, and safety announcements. Their reliability and clarity are essential for managing passenger flow. Digital wayfinding signs are also commonplace.

Architectural Integration and Art: "Media facades" involve cladding building exteriors with LED modules, turning architecture into a dynamic canvas for public art, light shows, or advertising. Artists are increasingly using flexible and transparent LEDs to create interactive installations and new forms of digital expression.

Future Trends:

MicroLED and Finer Pitches: The relentless pursuit of smaller, more efficient LEDs will continue. MicroLED technology, which uses microscopic, self-emissive inorganic LEDs, is the ultimate goal. It promises the perfect blacks and high contrast of OLED with the high brightness and longevity of traditional LED, all at a pixel pitch fine enough for consumer products. While currently cost-prohibitive for large-scale use, it will eventually become mainstream, enabling massive walls with cinematic quality viewable at any distance.

Transparency and Flexibility: Transparent LED films, which allow light to pass through when off, will become more common for store windows, creating "see-through" displays that overlay digital information on physical products. Flexible LED substrates will enable more organic, free-form shapes beyond simple curves, leading to revolutionary product designs and architectural elements.

AI and IoT Integration: The future of LED displays is cognitive and connected. Displays will be equipped with sensors and cameras, acting as nodes in the Internet of Things (IoT). Artificial Intelligence (AI) will analyze real-time data—such as crowd demographics (age, gender, attention), traffic patterns, or weather—to dynamically select and serve the most relevant content or advertisement automatically.

Enhanced Sustainability: The focus will intensify on reducing the environmental footprint. This will be achieved through more efficient LED chips and drivers, smart brightness controls, the use of recyclable materials, and designs that prioritize repairability and component replacement to combat electronic waste and extend product lifecycles.

The Metaverse and Phygital Experiences: LED volumes will be key to bridging the physical and digital worlds. They will be used to create immersive environments for virtual meetings, retail experiences where digital products can be viewed "in real life," and interactive entertainment zones, forming the physical gateway to the metaverse.

Holographic and 3D Effects: Advancements in lens technology and software will drive the adoption of more convincing glasses-free 3D (autostereoscopic) effects on LED displays. By using specially designed optical layers to direct different images to each eye, future displays could create compelling 3D visuals for advertising and entertainment, adding a new dimension of immersion.

In essence, the future of full-color LED displays is one of intelligence and immersion. The screen is evolving from a simple broadcast tool into an intelligent, responsive, and seamless interface between the digital and physical worlds. It will become an ambient element of our environment, transforming how we work, shop, play, and experience the world around us.

Conclusion

The full-color advertising LED display sign has cemented its status as one of the most transformative and dominant communication technologies of the digital age. Its journey from a simple indicator light to the brilliant, city-scale canvases we see today is a story of remarkable human innovation, reflecting our innate desire to share information and tell stories in the most impactful way possible. As we have explored through its intricate design, precise working principles, diverse applications, and exciting future, it is clear that this technology is far more than a mere tool for commerce; it is a dynamic platform that has reshaped visual culture, urban landscapes, and the very nature of audience engagement.

The technology's triumph is built on a foundation of undeniable strengths. Its self-illuminating nature provides unmatched visibility and vibrancy. Its digital core offers unparalleled flexibility and relevance through real-time content updates. Its modular design allows for limitless scalability and creative form factors. And its increasing energy efficiency and longevity make it a sustainable long-term investment. These advantages have allowed it to supersede previous signage mediums, offering a value proposition that is both powerful and unique.

However, its implementation is not without sobering challenges. The significant capital expenditure, technical complexity, and ongoing content demands require a serious commitment and strategic approach. The issues of light pollution and regulatory compliance highlight the need for responsible and community-conscious deployment. These challenges necessitate expertise, careful planning, and a long-term perspective, ensuring that the technology is used effectively and sustainably.

Looking forward, the trajectory of the LED display is one of convergence and intelligence. It is evolving from a standalone broadcast monolith into an integrated, responsive, and intelligent component of the built environment. The trends of MicroLED, transparency, and flexibility will make displays sharper, more seamless, and more organically woven into architecture. The integration of AI and IoT will transform them from dumb screens into smart, perceptual devices that understand their context and audience, enabling a new era of personalized and responsive communication.

The full-color LED display has fundamentally altered the relationship between brands and the public, between events and audiences, and between buildings and their cities. It has turned passive observation into active engagement and static messages into dynamic conversations. It is a medium that captures the spirit of our time: fast-paced, connected, and visually rich.

In conclusion, the full-color advertising LED display is a luminous pillar of modern communication. It is a testament to how engineering excellence and creative vision can combine to create something truly extraordinary. As the technology continues to advance, it will undoubtedly continue to illuminate our world, not just with light, but with information, artistry, and connection, solidifying its legacy as a defining technology of the 21st century.
