LED wall display signs have emerged as a revolutionary force in the world of visual communication, transforming the way information is presented and experiences are created. These large - scale displays, composed of numerous individual LED modules seamlessly integrated into a wall - like structure, offer unparalleled visual impact, flexibility, and functionality, making them a preferred choice for a wide range of applications across various industries.

The rapid rise of LED wall display signs can be attributed to significant advancements in LED technology. Over the years, the development of more efficient LED chips, improved manufacturing processes, and enhanced control systems has made it possible to produce large - scale, high - resolution displays with stunning visual quality. LEDs, known for their energy - efficiency, long lifespan, and vibrant color capabilities, form the building blocks of these displays, enabling the creation of bright, clear, and dynamic visuals that can capture and hold the audience's attention.

In the commercial sector, LED wall display signs have become an essential tool for businesses looking to make a strong impression. Retail stores use them to showcase products, attract customers, and create immersive shopping experiences. For example, high - end fashion stores might employ LED wall displays to present runway shows or display detailed product images, enhancing the brand's allure and engaging shoppers. In the hospitality industry, hotels and restaurants utilize these displays in lobbies, dining areas, and event spaces to display welcome messages, promote amenities, and set the ambiance.

The entertainment industry has also fully embraced LED wall display signs. In concert halls, theaters, and sports arenas, these displays are used to provide live event coverage, display advertisements, and enhance the overall spectator experience. During a concert, an LED wall can display mesmerizing visual effects, synchronized with the music, creating a truly immersive and unforgettable show. In sports events, LED walls can display real - time statistics, replays, and sponsor logos, keeping the audience engaged throughout the game.

Moreover, LED wall display signs are increasingly being used in corporate settings for internal communication, training, and presentations. Large - scale LED walls in conference rooms or corporate lobbies can display high - resolution videos, data visualizations, and company announcements, facilitating effective communication and collaboration among employees. In educational institutions, they are used for interactive learning, allowing students to engage with visual content in a more dynamic way.

The versatility of LED wall display signs is a key factor in their popularity. They can be customized in terms of size, shape, resolution, and functionality to meet the specific requirements of different applications. Whether it's a small - scale display for a local business or a massive, multi - story LED wall for a large - scale event, the modular nature of LED technology allows for easy assembly and scalability. Additionally, the ability to update content in real - time, display a variety of media types, and integrate with other systems further enhances their usability and value.

In summary, LED wall display signs have become an integral part of modern visual communication, offering a powerful combination of technological innovation, visual appeal, and versatility. As technology continues to evolve, these displays are expected to play an even more significant role in shaping the future of advertising, entertainment, communication, and various other fields.

The design and construction of LED wall display signs involve a meticulous process that combines advanced technology, engineering expertise, and creative design to create a visually stunning and reliable display solution.

Component Selection

LEDs

The choice of LEDs is the foundation of a high - quality LED wall display sign. High - brightness LEDs are crucial, especially for outdoor or large - scale indoor displays where visibility from a distance is essential. For outdoor applications, LEDs with a brightness rating of 5000 nits or more are commonly used to ensure that the display remains clear and legible even under direct sunlight. In indoor settings, where ambient light levels are lower, LEDs with a brightness range of 1000 - 3000 nits are often sufficient.

Color accuracy is another vital aspect. LEDs with a high Color - Rendering Index (CRI), typically 80 or above, are preferred to accurately reproduce a wide range of colors. This is particularly important for applications such as advertising, where brand colors need to be displayed precisely, and for entertainment, where vivid and realistic colors enhance the visual experience. Surface - Mount Device (SMD) LEDs are widely used in LED wall displays due to their small size, which enables higher pixel densities. Higher pixel densities result in sharper and more detailed images, making the display more visually appealing. For example, a display with a pixel pitch of 2 - 5 mm can offer excellent image quality for close - up viewing, while a larger pixel pitch of 10 - 20 mm may be suitable for displays viewed from a greater distance.

Driver Circuits

Driver circuits play a critical role in regulating the current supplied to the LEDs, ensuring stable and consistent performance. Pulse - Width Modulation (PWM) technology is commonly employed in these circuits. PWM allows for precise control of the LED brightness by rapidly switching the current on and off at a high frequency. The duty cycle of the PWM signal determines the average current flowing through the LED and, consequently, its brightness. This enables smooth transitions between different lighting levels, which is essential for creating natural - looking images, videos, and animations on the LED wall.

In addition to PWM, driver circuits often incorporate Power - Factor Correction (PFC) to improve the energy efficiency of the display. PFC reduces reactive power and increases the overall power factor, minimizing energy consumption and reducing electricity costs. Advanced driver circuits also feature multiple channels to drive a large number of LEDs simultaneously, ensuring that each LED receives the correct signal in a timely manner to prevent image distortion or flickering.

Control Systems

The control system is the brain of an LED wall display sign. Modern control systems are based on powerful digital signal processors (DSPs) and field - programmable gate arrays (FPGAs) that can handle high - definition video, image, and text data with ease. These control systems support a wide range of input interfaces, including HDMI, DVI, SDI, and Ethernet, to ensure compatibility with various content sources, such as media servers, computers, and video cameras.

For large - scale LED wall displays, control systems offer features such as multi - screen stitching, which allows multiple LED panels to be combined seamlessly to form a single large display. They also support real - time video processing, enabling the display to show live content without any significant delay. Remote control and monitoring capabilities are essential for LED wall displays, especially for large installations. Operators can manage the display content, adjust settings, and monitor the performance of the display from a central location, improving operational efficiency and reducing maintenance costs.

Structural Assembly

Frame and Panel Design

The frame of an LED wall display sign is designed to provide structural support and stability. It is typically made of steel or aluminum alloy, materials known for their strength and durability. The frame is engineered to withstand the weight of the LED panels, as well as any additional components, such as cooling systems or protective covers. In large - scale displays, the frame may be designed with a modular structure, allowing for easy assembly and disassembly. This modular design also makes it convenient to replace individual components in case of damage or malfunction.

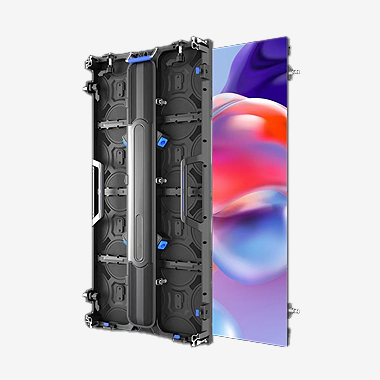

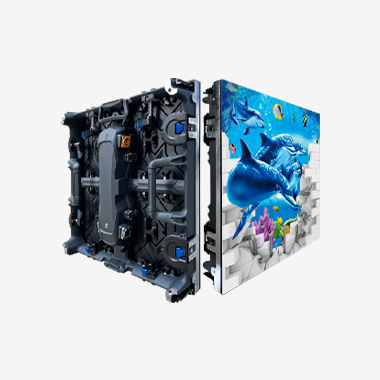

The LED panels themselves are constructed with precision. Each panel consists of a matrix of LEDs, driver circuits, and other necessary components, all mounted on a printed circuit board (PCB). The front of the panel is covered with a protective layer, such as tempered glass or polycarbonate, which provides high transparency, scratch resistance, and impact resistance. This layer protects the LEDs from physical damage and also helps to reduce reflections, ensuring that the display content is clearly visible from different angles.

To achieve a seamless visual appearance, the edges of the LED panels are designed to fit together tightly. Some displays use special connectors or mounting systems to ensure a gap - less connection between panels, minimizing any visible seams and creating a continuous, high - quality display surface.

Heat - Dissipation Systems

LED wall display signs generate a significant amount of heat during operation, especially when displaying high - brightness and high - motion content. Efficient heat dissipation is crucial to prevent overheating, which can lead to reduced brightness, color degradation, and premature failure of the LEDs. Passive heat - dissipation methods, such as large - surface - area aluminum heat sinks, are commonly used. These heat sinks are attached to the back of the LED panels to increase the surface area for heat transfer, allowing the heat to be dissipated into the surrounding air.

In some cases, especially for high - power or large - sized LED wall displays, active heat - dissipation systems, such as fans or liquid - cooling systems, may be employed. Fans can be used to circulate air around the heat sinks, enhancing the cooling effect. Liquid - cooling systems, although more complex and expensive, offer superior heat - dissipation capabilities and are often used in high - performance LED wall displays where precise temperature control is essential.

Protection and Enclosure

LED wall display signs are exposed to various environmental factors, depending on their installation location. For outdoor displays, protection against rain, snow, dust, UV radiation, and extreme temperatures is essential. Outdoor - rated LED wall displays typically have an Ingress Protection (IP) rating of IP65 or higher, indicating that they are completely protected against dust ingress and low - pressure water jets from any direction.

The enclosure of the display is designed to be weather - resistant, with sealed seams and gaskets to prevent water and dust from entering. Anti - corrosion coatings are applied to metal components to prevent rust and degradation over time. For indoor displays, protection against dust, accidental impacts, and electrical hazards is still important. The enclosure may be designed with a sleek and aesthetically pleasing appearance to blend in with the surrounding environment while providing the necessary protection for the internal components.

Customization

LED wall display signs offer a high degree of customization to meet the specific needs of different applications. The size of the display can be customized to fit various spaces, from small - scale displays for meeting rooms to massive video walls that cover entire building facades. The shape of the display can also be tailored, with options including rectangular, square, circular, or irregular shapes. Custom - shaped LED wall displays can be used to create unique and eye - catching installations that stand out from the crowd.

In terms of functionality, the display can be customized in terms of resolution, brightness, color calibration, and special features. Higher - resolution displays are ideal for applications that require detailed visuals, such as digital art installations or data visualization. Brightness can be adjusted according to the ambient light conditions of the installation location. Color calibration ensures accurate color reproduction, which is crucial for brand - focused applications. Special features, such as interactivity, 3D capabilities, or integration with other systems, can also be added to enhance the functionality and user experience of the LED wall display.

The working principles of LED wall display signs are based on the coordinated operation of LEDs, pixel formation, signal processing, and control systems, all working together to create a high - quality visual display.

LED Operation

At the heart of an LED wall display sign are the LEDs, which operate on the principle of electroluminescence. When a forward - bias voltage is applied across the p - n junction of an LED semiconductor, electrons from the n - type region and holes from the p - type region recombine. This recombination process releases energy in the form of photons, resulting in the emission of light.

The color of the emitted light depends on the energy bandgap of the semiconductor material. Different materials, such as gallium nitride (GaN) for blue and green LEDs and aluminum gallium indium phosphide (AlGaInP) for red LEDs, are used to produce a wide spectrum of colors. In LED wall displays, red, green, and blue (RGB) LEDs are combined to create full - color images. By adjusting the intensity of each of these primary - color LEDs, a vast array of colors and shades can be generated through the principle of additive color mixing.

The brightness of the LEDs is controlled using Pulse - Width Modulation (PWM). PWM rapidly switches the current to the LEDs on and off at a high frequency. The duty cycle of the PWM signal, which is the ratio of the on - time to the total cycle time, determines the average current flowing through the LED and thus its brightness. This precise control over the LED brightness allows for smooth transitions between different lighting levels, enabling the creation of natural - looking images, videos, and animations on the LED wall.

Pixel Formation

Pixels are the building blocks of the visual image on an LED wall display sign. Each pixel typically consists of multiple LEDs, and for full - color displays, it usually contains one red, one green, and one blue LED. These LEDs are closely grouped together, and the intensity of each LED is precisely controlled to produce different colors and brightness levels.

The pixel pitch, which is the distance between the centers of two adjacent pixels, is a critical parameter that determines the resolution and the clarity of the display. A smaller pixel pitch results in a higher - resolution display, allowing for more detailed images. However, smaller pixel pitches also increase the complexity and cost of the display. The choice of pixel pitch depends on various factors, such as the viewing distance, the intended application, and the available budget. For example, in a large - scale outdoor LED wall display that will be viewed from a long distance, a larger pixel pitch may be sufficient, while a smaller pixel pitch is required for indoor displays where viewers will be closer to the screen.

The pixels are arranged in a matrix pattern, and the control system sends signals to each pixel to instruct the individual LEDs to emit light at the appropriate intensity. By controlling the LEDs in each pixel, the display can form the desired image or video, with each pixel contributing to the overall visual composition.

Signal Processing and Control

Input Signal Reception and Decoding

The LED wall display sign first receives input signals from various sources, such as media servers, computers, or video cameras. These signals can be in the form of video, image, or text data and are transmitted through different interfaces, including HDMI, DVI, SDI, or Ethernet.

Once received, the control system of the display decodes the signals to separate them into their individual components, such as color information, brightness levels, and synchronization signals. For video signals, the control system may apply advanced video - processing algorithms, such as de - interlacing, noise reduction, and upscaling or downscaling, to optimize the visual quality for the display. These algorithms ensure that the video content is smooth, free of artifacts, and displayed at the native resolution of the LED wall.

Pixel - Level Control

After decoding the input signals, the control system sends the appropriate control signals to each pixel. These control signals determine the intensity of each LED within the pixel, thereby controlling the color and brightness of the pixel. The control system uses a matrix - based addressing scheme to identify and control each pixel individually.

PWM is commonly used for pixel - level control, as described earlier. By adjusting the PWM duty cycle for each of the red, green, and blue LEDs in a pixel, the display can create a wide variety of colors and shades with high precision. This enables the accurate reproduction of complex visual content, such as high - definition videos, detailed graphics, and dynamic text animations.

Content Management and Display Refresh

LED wall display signs often come with content management systems that allow users to create, edit, and schedule the display of content. Content management systems can be used to upload images, videos, and text, arrange them into playlists, and set the duration for each piece of content. The system can also be configured to update the display content automatically based on specific triggers, such as time of day, day of the week, or external events.

To ensure a smooth and flicker - free visual experience, the display must refresh the image at a high frequency. The refresh rate, which is the number of times the display updates the image per second, is typically 60 Hz or higher for LED wall display signs. A higher refresh rate results in smoother motion and reduces the appearance of flicker, especially when displaying fast - moving video content. The control system is responsible for managing the display refresh rate and ensuring that the image is updated accurately and consistently.

Advantages

Enhanced Audience Engagement

LED wall display signs are highly effective at engaging audiences. The dynamic and interactive nature of the displays can attract and hold the attention of viewers, increasing the likelihood of message retention. For example, in an entertainment venue, LED walls can display synchronized visual effects with live music performances, creating an immersive atmosphere that keeps the audience engaged throughout the show. In shopping malls, interactive LED walls can allow customers to interact with products virtually, such as trying on clothes or previewing furniture in their homes using augmented reality (AR) technology integrated into the display. This interactivity not only makes the shopping experience more enjoyable but also encourages customers to spend more time exploring the products, potentially leading to increased sales.

Scalability

The modular design of LED wall display signs allows for easy scalability. Whether a business needs to expand the size of its display to cover a larger area or reduce it to fit a smaller space, additional LED modules can be added or removed with relative ease. This scalability makes LED walls suitable for both small - scale and large - scale projects. For instance, a startup company may begin with a small LED wall display in its office for internal communication and gradually expand it as the business grows and the need for more prominent visual communication increases. Similarly, event organizers can assemble LED walls of varying sizes depending on the scale of the event, from a small - scale seminar to a large - scale international conference.

Challenges

High Initial Cost

One of the major challenges associated with LED wall display signs is the high initial cost. The components required to build a high - quality LED wall, including advanced LED modules, sophisticated driver circuits, powerful control systems, and sturdy structural frames, contribute to a significant upfront investment. Additionally, costs for installation, calibration, and integration with other systems further add to the overall expense. Small businesses and organizations with limited budgets may find it difficult to afford these displays, which can act as a barrier to their adoption. Even for larger enterprises, the substantial capital expenditure requires careful financial planning and consideration of the return on investment.

Technical Complexity and Maintenance Requirements

LED wall display signs are technically complex systems. Installing and setting up these displays correctly requires specialized knowledge and skills. From ensuring proper electrical connections to calibrating the display for optimal visual quality, each step demands expertise. Moreover, maintenance can be challenging. Although LEDs have a long lifespan, issues such as pixel failures, problems with the driver circuits, or malfunctions in the control system can occur over time. Identifying and troubleshooting these technical problems often requires the assistance of trained technicians, which can be time - consuming and costly. Regular maintenance, including cleaning the display surface and checking for any signs of wear and tear, is also necessary to ensure the longevity and performance of the LED wall.

Power Consumption Concerns

Despite being more energy - efficient than some traditional display technologies, large - scale LED wall display signs can still consume a significant amount of power, especially when operating at high brightness levels for extended periods. In commercial settings where multiple LED walls are in use, the cumulative power consumption can result in high electricity bills. This power consumption also has environmental implications, as it requires a substantial amount of electrical energy, which may be generated from non - renewable sources. Finding ways to further optimize the power efficiency of these displays while maintaining their visual quality remains a challenge for manufacturers and users alike.

Content Creation and Management Complexity

Creating high - quality content that fully utilizes the capabilities of LED wall display signs can be a complex task. The large size and high resolution of these displays demand detailed and high - definition visuals. Producing suitable images, videos, and animations often requires professional - grade software, equipment, and skilled designers. Additionally, managing the content to ensure it is relevant, engaging, and updated regularly can be time - consuming. Coordinating the display of different types of content, such as advertisements, event information, and brand messages, in an organized and effective manner requires a robust content management system and dedicated resources.

Regulatory and Zoning Restrictions

LED wall display signs, particularly those used outdoors, are subject to various regulatory and zoning restrictions. Local governments and municipalities may have regulations regarding the size, brightness, location, and operating hours of these displays. Concerns such as light pollution, distraction to drivers, and the visual impact on the urban landscape often lead to strict guidelines. For example, in some areas, outdoor LED walls are prohibited from operating at full brightness during certain hours to minimize light pollution. Navigating these regulations and obtaining the necessary permits can be a complex and time - consuming process for businesses and event organizers, adding another layer of challenge to the deployment of LED wall display signs.

Applications

Advertising and Marketing

LED wall display signs are extensively used in advertising and marketing. In urban areas, large - scale LED walls on building facades serve as prominent billboards, capturing the attention of a vast audience. Brands can display high - impact advertisements, product launches, and brand stories with vivid visuals and dynamic animations. Retail stores also use LED walls to create immersive shopping experiences, showcasing products in an engaging way. For example, a electronics store might use an LED wall to display product demonstrations, customer reviews, and special offers, enticing customers to make purchases. In addition, LED walls at trade shows and exhibitions are used to promote companies and their products, helping businesses stand out in a competitive environment.

Entertainment and Events

The entertainment industry heavily relies on LED wall display signs. In concert halls and music festivals, LED walls are used to display stunning visual effects, artist videos, and live event feeds, enhancing the overall entertainment experience. Sports arenas use LED walls to display real - time game statistics, replays, and advertisements, keeping spectators engaged throughout the game. Theatres and performing arts venues use LED walls as backdrops, creating dynamic and changing scenery that adds depth and visual interest to performances. For large - scale events such as award shows and conferences, LED walls are used to display presentations, keynote speeches, and event branding, ensuring a professional and impactful visual experience for the audience.

Corporate and Educational Settings

In corporate settings, LED wall display signs are used for internal communication, training, and presentations. Large - scale LED walls in corporate lobbies can display company news, announcements, and achievements, fostering a sense of community among employees. In conference rooms, LED walls are used for video conferencing, data visualization, and collaborative presentations, improving communication and productivity. In educational institutions, LED walls are used for interactive learning experiences. For example, in classrooms, LED walls can display educational videos, interactive maps, and scientific simulations, making learning more engaging and immersive for students. They can also be used in libraries and common areas to display information about upcoming events, book recommendations, and educational resources.

Digital Art and Public Displays

LED wall display signs have also become a popular medium for digital art and public displays. Artists use LED walls to showcase their digital artworks, creating large - scale, interactive, and immersive art installations in public spaces. These displays not only add aesthetic value to the urban environment but also serve as a platform for artistic expression and community engagement. In addition, LED walls in public squares, transportation hubs, and other public areas are used to display public information, such as news, weather updates, and cultural event announcements, enhancing the functionality and interactivity of public spaces.

Future Trends

Higher Resolution and Enhanced Visual Quality

The future of LED wall display signs will see a continuous push towards higher resolutions. With the increasing demand for more detailed and realistic visuals, displays with 8K resolution and beyond are expected to become more common. Higher resolutions will enable the display of even more intricate details, making images and videos appear more lifelike. In addition, advancements in high - dynamic - range (HDR) and wide - color - gamut (WCG) technologies will further enhance the visual quality of LED walls. HDR will increase the contrast between bright and dark areas, making the images more vivid, while WCG will expand the range of colors that can be displayed, resulting in more vibrant and true - to - life visuals.

Integration with Emerging Technologies

LED wall display signs will increasingly integrate with emerging technologies such as artificial intelligence (AI), virtual reality (VR), and augmented reality (AR). AI can be used to analyze audience data and optimize the display content in real - time, making the advertisements and messages more targeted and effective. VR and AR technologies can be integrated with LED walls to create immersive and interactive experiences. For example, in a retail store, customers could use AR - enabled LED walls to visualize products in their own spaces before making a purchase. The integration of these technologies will open up new possibilities for creative expression, marketing, and entertainment, transforming the way LED walls are used.

Sustainability and Energy Efficiency Improvements

There will be a greater focus on improving the sustainability and energy efficiency of LED wall display signs. Manufacturers will continue to develop more energy - efficient LED chips and components, reducing the power consumption of the displays. Innovations such as smart lighting control systems that adjust the brightness of the display based on ambient light conditions and occupancy sensors will become more common, further reducing energy waste. In addition, the use of sustainable materials in the construction of LED walls, such as recycled metals and plastics, will increase, and more efforts will be made to improve the recyclability of the displays at the end of their lifespan.

Enhanced Interactivity and User - Experience

Future LED wall display signs will offer enhanced interactivity and user - experience. Touch - screen capabilities, gesture control, and voice - activated features will become more prevalent, allowing users to interact with the displays in more natural and intuitive ways. Social media integration will also be further enhanced, enabling real - time sharing and interaction between the display and the audience. For example, users could share their experiences related to the content displayed on the LED wall on social media platforms, and the display could respond in real - time based on the social media feedback. These interactive features will make LED walls more engaging and relevant to the audience, increasing their effectiveness in various applications.

Conclusion

LED wall display signs have revolutionized the way visual information is presented and experienced across a wide range of industries. Their numerous advantages, including stunning visual impact, versatility, energy efficiency, and long lifespan, have made them an essential tool for advertising, entertainment, communication, and more. However, challenges such as high initial costs, technical complexity, power consumption concerns, content creation complexity, and regulatory restrictions still need to be addressed.

Looking ahead, the future of LED wall display signs is promising, with trends such as higher resolutions, integration with emerging technologies, sustainability improvements, and enhanced interactivity set to further enhance their capabilities and expand their applications. As technology continues to evolve, LED wall display signs will likely play an even more significant role in shaping the future of visual communication, providing more immersive, engaging, and sustainable solutions for businesses, organizations, and the public. By leveraging these advancements and overcoming the existing challenges, LED wall display signs will continue to be at the forefront of innovation in the field of display technology.
