| Item | P10 |
| Pixel pitch | 10mm |
| Module size | 320*160mm |
| Module resolution | 32x16 |
| Physical density | 10000 dots/m² |
| LED type | SMD3535 |

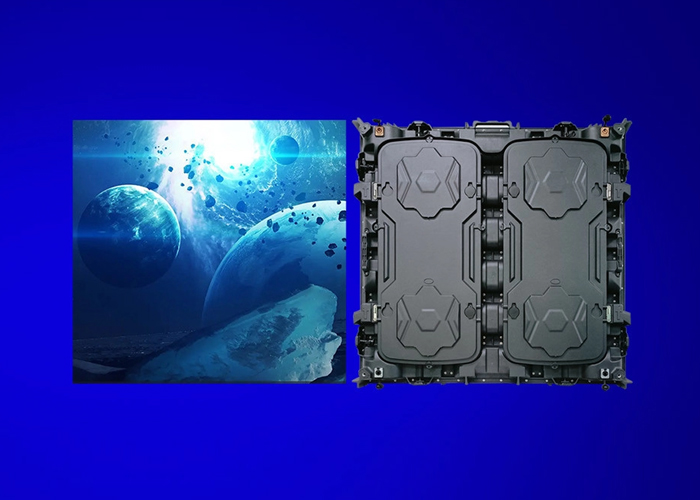

| Cabinet size | 960x960x108mm |
| Cabinet resolution | 96x96 |
| Cabinet weight | 28kg |
| Cabinet material | Die casting aluminum |
| Maintenance way | Rear |
| Best viewing distance | ≥10m |
| Best viewing angle | H:140°;V:140° |
| Driving method (Constant Current) | 1/2 Scan |
| Video frame rate | ≥60 Hz |
| Refresh rate | 1920-3840Hz |
| Brightness | ≥6000nits |
| Grey level | 12-16bit |
| Waterproof grade | IP65 |
| Average power consumption | 292W |
| Life time | >100,000 Hours |
| The rate | <0.0002 |
